No Product Image Available
Shop STEELMAX

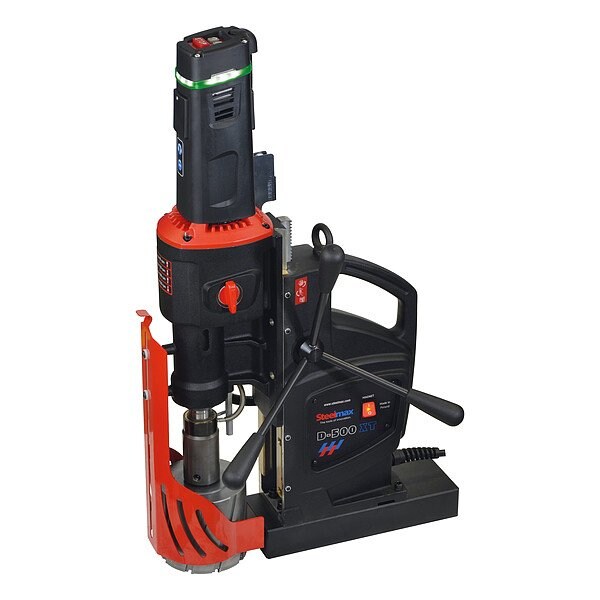

DrillPress, Weldon, 3/4in, 19A, 520RPM

  • Mfr # SM-D-500-XT

  • Zoro # G710881729

product price:  $5,992.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Spindle Taper
MT4
Drill Travel
10 in
Magnet Type
Electric
Overall Height
32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SM-D-500-XT
Zoro #
G710881729
UPC #
848118005551
Country of Origin
Poland

Dimensions

Overall Height
32 in
Chuck Size
3/4 in
Overall Width
13 in
Overall Length
32 in
Cord Length
5 ft
Cutting Depth - Maximum
4 in
Wire Rope Length
32 in

Details

Item
Drill Press
Voltage
115V AC
Spindle Taper
MT4
Drill Travel
10 in
Magnet Type
Electric
Series
steelmax mag drill press
Reversible
Forward/Reverse
Includes
drilling machine, plastic case, coolant bottle, safety strap, set of tools
Features
360 deg Visual Monitoring System Indicates Current Condition of the Drill and Gives Safety and Diagnostic, 4-Speed Gear with Continuous Speed Adjustment, Drilling with both TCT and HSS Cutters and Twist Drill Bits from Small upto Large Diameters, Electronic Clutch (Faster than Mechanical), Full Electronic Motor Control, Innovative Smart Magnet with Reduced Weight, Intelligent Speed Control System Maintains Stable Speed Regardless of Load Changes, Intuitive Control Panel at Top of the Drill, Overload and Overheat Protection, Rigid Design Extends Tool Life, Tapping of through and Blind Holes with Intelligent Load Control, Tilt Sensor (Gyroscopic) Stops Motor in Case of Machine Break Away, Very Powerful 2300 W Motor
Tool Weight
125 lb
Tapping Compatible
Tapping Compatible
Magnetic Force
5,622 lbf
Coolant System
Yes
Maximum Working Speed
520 RPM
Chuck Style
Weldon
Power Source
Corded
Tool Style
Large
Application
Heavy-Duty Hole Making and Tapping
Minimum Working Speed
58 RPM
Tapping Capacity in Steel
1 5/8
Variable Speed
Yes
Phase
Single-Phase
Maximum Core Bit Compatibility
6 in
Drilling Capacity in Aluminum
1 5/8 in
Minimum Spindle Speed
58 RPM
Minimum Core Bit Compatibility
5/16 in
Base Type
Fixed
Plug Type
Three-Prong
Drilling Capacity in Stainless Steel
6 in
Number of Spindle Speeds
Continuous
Power Down Feed Included
No
Drilling Capacity in Steel
6 in
Spindle Travel
6 in
Maximum Spindle Speed
520 RPM
Number of Pieces
8
Current
19 A
Tapping Capacity in Aluminum
1 5/8
Tool Series
Steelmax Mag Drill Press
Twist Drill Capacity - Maximum
1 7/8 in
Reaming Capacity - Maximum
1 7/8 in
Tapping Capacity - Maximum
1 5/8 in
High Speed Steel Annular Cutter Capacity - Maximum
6 in
Carbide Annular Cutter Capacity - Maximum
6 in
Power Source - TS Only
Corded

Description

Drill Press, Magnet Type Electric, Variable Speed Yes, Drilling Capacity in Steel 6 in, Drilling Capacity in Wood Not Applicable, Drilling Capacity in Cast Iron Not Applicable, Drill Travel 10 in, Maximum Spindle Speed 520 RPM, Minimum Spindle Speed 58 RPM, Current 19 A, Voltage 115/230V AC, Phase Single-Phase, Base Type Fixed, Spindle Taper MT4, Chuck Size 3/4 in, Chuck Style Weldon, Drill Point Pressure Not Applicable, Power Down Feed Included No, Coolant System Yes, Tool Style Large

Restrictions

Hazardous material
