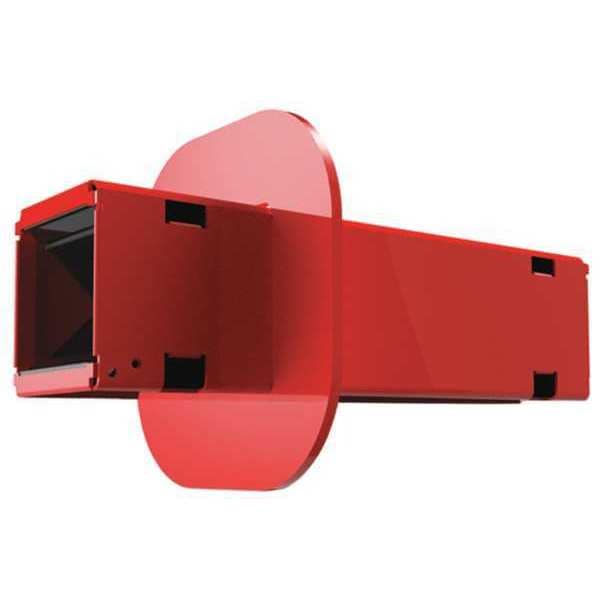

Sti Marine Fire Barrier Pathway, Rectangle, 6" W, Red MDM300A - main

Fire Barrier Pathway, Rectangle, 6" W, Red

  • Mfr # MDM300A

  • Zoro # G7883106

product price: $797.99
/ea
Free Shipping & Returns

Key Features

Color
Red
Material
Steel
Fire Rating
1 hr, 2 hr, 3 hr, 4 hr
Standards
Tested to IMO A.754 FTP, American Bureau of Shipping, US Coast Guard, Bureau Veritas, 1408/14, Class A0-A60, B0-B30, H0-H120 Bulkheads and Decks
Expansion Temperature
160 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MDM300A
Zoro #
G7883106
UPC #
730573400074
Country of Origin
United States

Dimensions

Overall Length
10.61 in
Thickness
1.5 mm
Overall Width
6 in
Overall Height
6 in

Details

Item
Fire Barrier Pathway
Color
Red
Material
Steel
Fire Rating
1 hr, 2 hr, 3 hr, 4 hr
Standards
Tested to IMO A.754 FTP, American Bureau of Shipping, US Coast Guard, Bureau Veritas, 1408/14, Class A0-A60, B0-B30, H0-H120 Bulkheads and Decks
Expansion Temperature
160 Degrees C
Shape
Rectangular
Features
100% Compliant 100% of the Time, Fully Assembled Out of the Box, Greater Performance Reliability, Maintenance Free, No Activation of the Fire Sealing System Required, No Putty or Sealant Required
For Use On
Cable
Cable Loading Area
5 sq in
Market
Industrial
Fire Resistance Type
Intumescent
Maximum Service Temperature
-23 Degrees C
Paintable
Yes
Body Material
Steel
Body Material Finish
Galvanized
Minimum Service Temperature
49 Degrees C
Firestop Type
Pipe Collars For Passing Through Walls

Description

Fire Barrier Pathway, Cable Loading Area 5 sq in, Fire Rating 1 hr, 2 hr, 3 hr, 4 hr, For Use On Cable, Overall Height 6 in, Overall Length 10.61 in, Overall Width 6 in, Shape Rectangular, Body Material Steel, Body Material Finish Galvanized, Color Red, Expansion Temperature 160 Degrees C
