Shop STREAMLINE

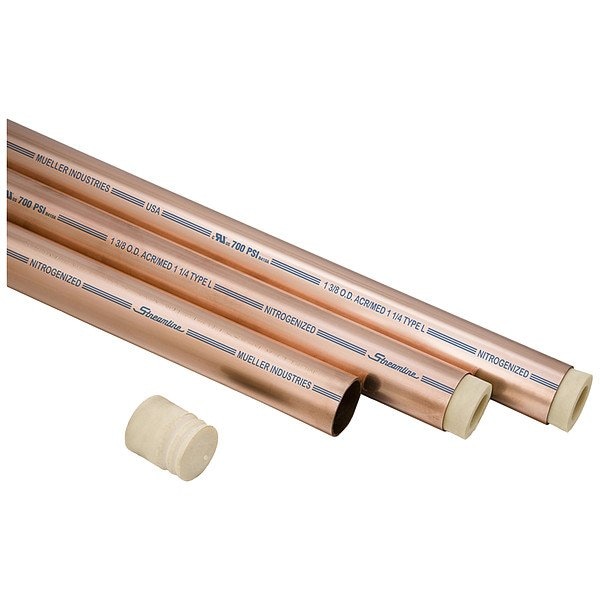

Copper Tube, 10 ft Overall L

  • Mfr # AC34010

  • Zoro # G506878940

product price:  $578.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Application
Air Conditioning, Refrigeration
Wall Thickness
0.1 in
Copper Tube Type
ACR
Standards
ASTM B280, UL Listed, UNS C12200
Material
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
AC34010
Zoro #
G506878940
UPC #
685768267317
Country of Origin
United States

Dimensions

Wall Thickness
0.1 in
Inside Diameter
3.375 in
Overall Length
10 ft
Outside Diameter
3 5/8 in
Copper Tube Size
3 5/8 in

Details

Application
Air Conditioning, Refrigeration
Copper Tube Type
ACR
Item
Copper Tube
Standards
ASTM B280, UL Listed, UNS C12200
Material
Copper
Stripe Color
Blue
Maximum Operating Pressure
450 psi @ 150 Degrees F
Material Trade Name
Streamline
Maximum Operating Temperature
400 Degrees F
Resistance Properties
Corrosion Resistant
Flow Application
General Purpose Liquid Transfer
Fabrication
Seamless
For Potable Water Use
Yes
Cleaned and Capped
Yes
For Fluid Type
Refrigerants
Industry Application
HVACR
Material Grade
C12200
Temper
Hard
For Location
Indoor, Outdoor
Weight per Foot
4.29 lb/ft
Tube Form
Straight
Market
Commercial, Industrial, Residential
System of Measurement
Inch
Features
Oxides Greatly Reduces System Contamination, Tube is Pressurized with Nitrogen to Provide Maximum Protection Against the Formation of Harmful Oxides Normally Formed During Brazing Operations
Chemical Compatibility
Acetic Acid 10%, Acetone, Calcium Chloride, Ether, Sodium Carbonate
Beverage, Food, and Water Compatibility
Citric Acid, Glycerin, Non-Potable Water, Oils and Fats, Potable Water, Salt Water
Food and Beverage Compatibility
Citric Acid, Glycerin, Non-Potable Water, Oils and Fats, Potable Water, Salt Water

Description

Copper Tube, Application Air Conditioning, Refrigeration, Cleaned and Capped Yes, Copper Tube Size 3 5/8 in, Copper Tube Type ACR, Fabrication Seamless, Inside Diameter 3.375 in, Material Copper, Material Grade C12200, Maximum Operating Pressure 450 psi @ 150 Degrees F, Maximum Operating Temperature 400 Degrees F, Outside Diameter 3 5/8 in, Overall Length 10 ft, Resistance Properties Corrosion Resistant, Standards ASTM B280, UL Listed, UNS C12200, Stripe Color Blue, Temper Hard

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
