  13. Mercury Contactor, SPST, 60A, 240VAC

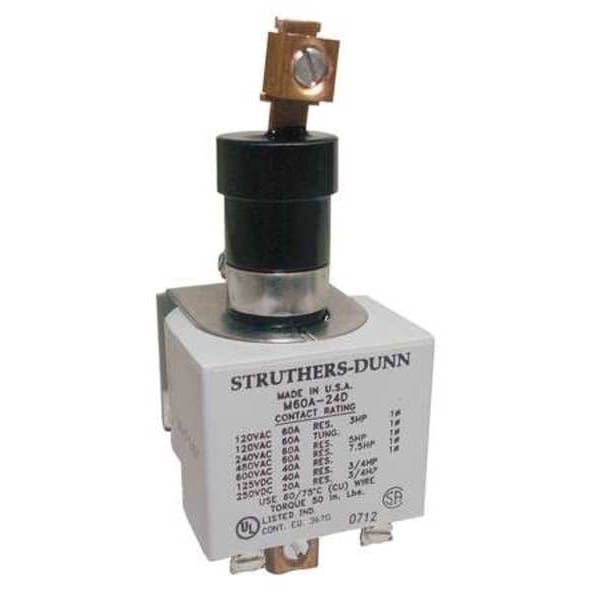

Struthers-Dunn Mercury Contactor, SPST, 60A, 240VAC M60A-240VAC - main

Mercury Contactor, SPST, 60A, 240VAC

  • Mfr # M60A-240VAC

  • Zoro # G4113322

product price: $181.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO
Number of Poles
1
Contact Amp Rating (Resistive)
60 A
Coil Volts
240V AC
Depth
2.3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M60A-240VAC
Zoro #
G4113322
UPC #
-
Country of Origin
Multiple

Dimensions

Depth
2.3 in
Height
5.05 in
Width
1.94 in
Overall Depth
2.3 in
Overall Height
5.06 in
Overall Width
1.94 in

Details

Item
Mercury Displacement Contactor
Contact Form
1NO
Number of Poles
1
Contact Amp Rating (Resistive)
60 A
Coil Volts
240V AC
Mounting Position
Vertical within 10 Degrees
Features
Hermetic Seal, High Dielectric Withstanding Voltage, Long Operating Life, Quite Operation
Contact Material
Liquid Mercury
Standards
CSA, UL Listed
HP @ 3 Phase - 240V
10 hp
Hz
50/60
HP @ 1 Phase - 120V
5 hp
HP @ 1 Phase - 240V
10 hp
HP @ 3 Phase - 480V
15 hp
HP @ 3 Phase - 600V
15 hp
Coil VA Rating
7 to 28
Mounting Postion
Vertical
Full Load Current - Resistive
60 A
Horsepower @ Single Phase - 240V AC
10 hp
Horsepower @ Single Phase - 120V AC
5 hp
AC Full Load Current - Inductive @ Single Phase
28 A
Maximum Operating Temperature
165 Degrees F
Mechanical Operating Durability
5,000,000
Series
M60
Horsepower @ Three Phase - 600V AC
15 hp
Frequency
50/60 Hz
Coil Voltage
240V AC
Horsepower @ Three Phase - 240V AC
10 hp
Electrical Operating Durability
250,000
Mounting Style
Surface
Horsepower @ Three Phase - 480V AC
15 hp
Minimum Operating Temperature
-30 Degrees F
AC Full Load Current - Inductive @ Three Phase
28 A
Terminal Connection Type
Screw Terminals
Coil Power
3 to 9 W, 7 to 28 VA

Description

Mercury Displacement Contactor, Coil Voltage 240V AC, Contact Form 1NO, Contact Material Liquid Mercury, Number of Poles 1, Mounting Style Surface, Horsepower @ Three Phase - 600V AC 15 hp, Horsepower @ Three Phase - 480V AC 15 hp, Horsepower @ Single Phase - 240V AC 10 hp, Horsepower @ Single Phase - 120V AC 5 hp, Horsepower @ Three Phase - 240V AC 10 hp, Terminal Connection Type Screw Terminals, AC Full Load Current - Inductive @ Single Phase 28 A

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hazardous material
This item has been restricted from sale in the following states: CT, GU, IL, LA, MA, ME, NH, NY, RI, VT, WI
