  11. Open Power Relay, 14 Pin, 120VAC, 4PDT
This item is Discontinued.

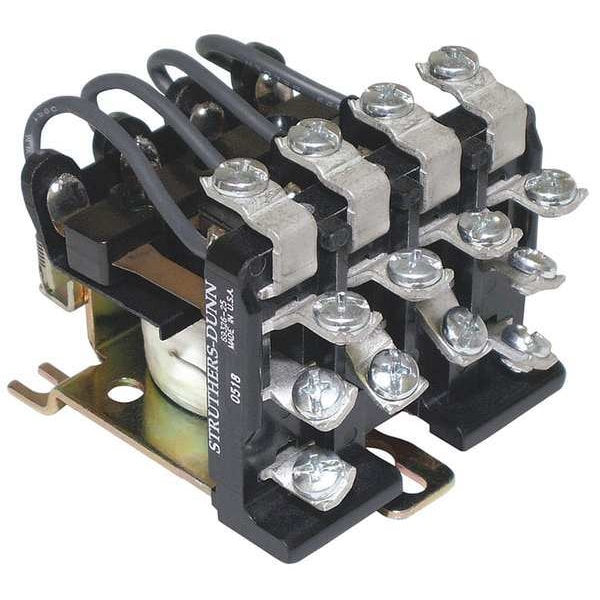

Struthers-Dunn Open Power Relay, 14 Pin, 120VAC, 4PDT PM-17AY-120

Open Power Relay, 14 Pin, 120VAC, 4PDT (Discontinued)

  • Mfr # PM-17AY-120
  • Zoro # G4302943
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PM-17AY-120
Zoro #
G4302943
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.72"H, 2.66"W, 3.40"D
Overall Height - Relay
3.40 in
Body Width - Relay
2.66 in
Body Height - Relay
2.72 in
Body Depth - Relay
2.72 in

Details

Item - Relay
Open Power Relay
Mounting - Relay
Surface
Contact Form - Relay
4PDT
Item
Open Power Relay
Hz - Electrical
50 Hz, 60 Hz
Number of Poles
4
Contact Material
Silver Alloy
Power Consumption - Relay
14.0VA
Standards
RUL E367G, CUS E13224
DC Contact Rating - Relay
20A @ 28V
Contact Form
4PDT
AC Contact Rating - Relay
35A @ 240V
HP @ 120V
1
Number of Pins - Relay
14
Contact Amp Rating (Resistive)
35A @ 240VAC, 20A @ 28VDC
Hz
50/60
Coil Volts
120V AC
Features
Excellent Contact Wiping Action
Coil Rating
14.0VA, 4.4W
Pins
14
Electrical Connection - Power Relay
Screw
HP @ 240V
1-1/2
Electrical Connection
Screw
Mounting
Panel
Weight
0.931 lbs.
Base Type
Panel
Response Time
40 msec
Series
PM

Description

Open Power Relay, Contact Form 4PDT, Electrical Connection Screw, Contact Material Silver Alloy, Features Excellent Contact Wiping Action
