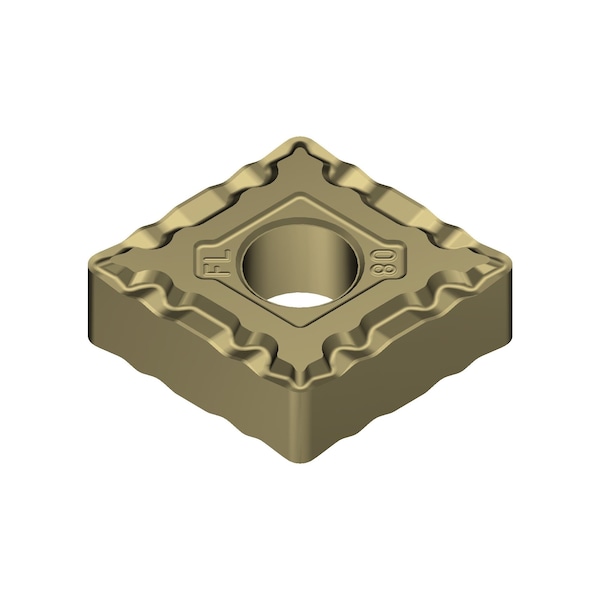

CNMG432EFL Grade AC8020P Carbide Turning Insert
Mfr # 19W1BTH
Zoro # G008976854
product price:Â $17.69
/ea
Sold in multiples of 10 for $176.90
Key Features
Coating
Absotech
Insert Style
CNMG
Included Angle
80 Degrees
Rake
Negative
Inscribed Circle
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
19W1BTH
Zoro #
G008976854
UPC #
-
Country of Origin
Japan
Dimensions
Insert Thickness
0.1874 in
Nose Radius
0.0315 in
Insert Size
0.5079 in
Mounting Hole Dia.
5.16 mm
Details
Coating
Absotech
Insert Style
CNMG
Included Angle
80 Degrees
Rake
Negative
Inscribed Circle
1/2 in
ISO Number
CNMG120408N-FL
Workpiece Compatibility
Steel
Tolerance Class
M
Insert Material
Carbide
Item
Turning Insert
Coating Process
CVD
Relief Angle
0 Degrees
Mounting Style
Pin and Clamp
Material Application ISO Code
P20
ANSI Number
CNMG432EFL-AC8020P
Grade
AC8020P
Series
AC8000P
Chip-Breaker
Yes
Description
