  11. Diamond Turning Insert, Diamond, 2, CCGT, .5, Cermet
Sumitomo Diamond Turning Insert, Diamond, 2, CCGT, .5, Cermet CCGT21.50.5LFX-T1500Z - main

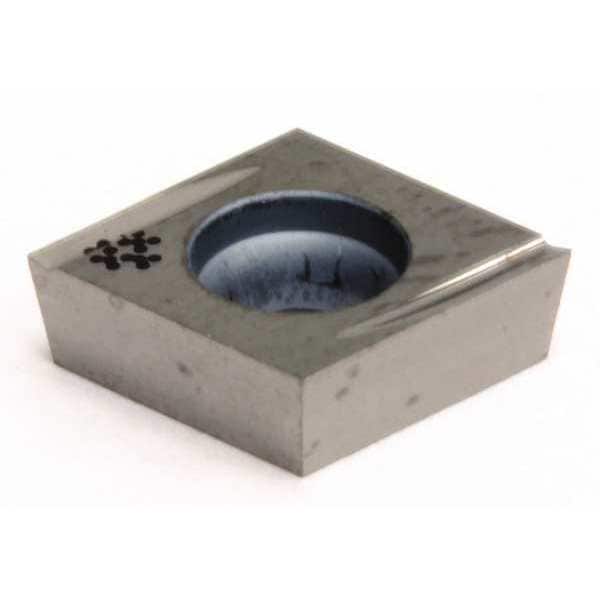

Diamond Turning Insert, Diamond, 2, CCGT, .5, Cermet

  • Mfr # CCGT21.50.5LFX-T1500Z

  • Zoro # G6333568

product price: $9.79
/ea
Sold in multiples of 10 for $97.90

Key Features

Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
2
Insert Size
21.50.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCGT21.50.5LFX-T1500Z
Zoro #
G6333568
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.50.5
Corner Radius
.5
Nose Radius
0.0156"
Insert Thickness
0.0940"
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
15 Degrees
ISO Number
CCGT060202LFX
Hardened (H) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Steel (P) Compatibility
Yes
No. of Edges
4
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Mounting Style
Screw-On
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
No
ANSI Number
CCGT21.50.5LFX-T1500Z
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Coating
Uncoated
Clearance Angle
7 Degrees
Number of Cutting Edges
4
Included Angle
80 Degrees
Material - Machining
Cermet
Insert Holding Type
Countersink Hole
Shape
Rhombic
Chip-Breaker Style
Single
Measurement System
Fractional Inch
Cutting Application
Turning
ANSI Code
CCGT21.50.5LFX
Primary Material Application ISO Code
P
Manufacturer Grade
T1500Z
Coating Process
PVD
Chip-Breaker Code
LFX
Primary Material Application
Steel
Features
Wear Resistant
Material
Cermet
Style
CCGT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code LFX, Inscribed Circle 1/4 in, ANSI Code CCGT21.50.5LFX, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process PVD
