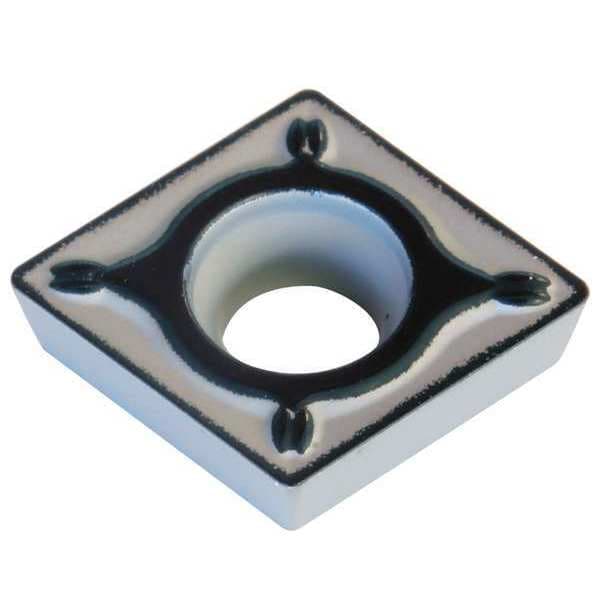

Sumitomo Diamond Turning Insert, Diamond, 2, CPMT, 2, Carbide CPMT21.52ESU-AC8025P - main

Diamond Turning Insert, Diamond, 2, CPMT, 2, Carbide

  • Mfr # CPMT21.52ESU-AC8025P

  • Zoro # G6326050

product price: $9.55
/ea
Sold in multiples of 10 for $95.50

Key Features

Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
2
Insert Size
21.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPMT21.52ESU-AC8025P
Zoro #
G6326050
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.52
Corner Radius
2
Mounting Hole Dia.
0.110"
Insert Thickness
0.0940"
Nose Radius
0.0313"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CPMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
CPMT060208N-SU
Mounting Style
Top and Hole Clamping
Cutting Direction
Neutral
Cast Iron (K) Compatibility
Yes
ANSI Number
CPMT21.52ESU-AC8025P
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
No. of Edges
4
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Hardened (H) Compatibility
No
Coating
CVD
Super Alloy (S) Compatibility
No
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Shape
Rhombic
Chip-Breaker Code
ESU
Insert Holding Type
Countersink Hole
Coating Process
CVD
Chip-Breaker Style
Single
Material - Machining
Carbide
ANSI Code
CPMT21.52ESU
Cutting Application
Turning
Number of Cutting Edges
4
Primary Material Application
Steel
Included Angle
80 Degrees
Finish - Machining
Absotech Platinum
Manufacturer Grade
AC8025P
Features
Adhesion Resistant, Chipping Resistant
Measurement System
Fractional Inch
Primary Material Application ISO Code
P25
Clearance Angle
11 Degrees
Material
Carbide
Application
Finishing
Style
CPMT

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/4 in, Absotech Platinum, ANSI Code CPMT21.52ESU, Chip-Breaker Style Single, Clearance Angle 11 Degrees , Coating Process CVD
