  11. Diamond Turning Insert, Diamond, 2, DCGT, .2

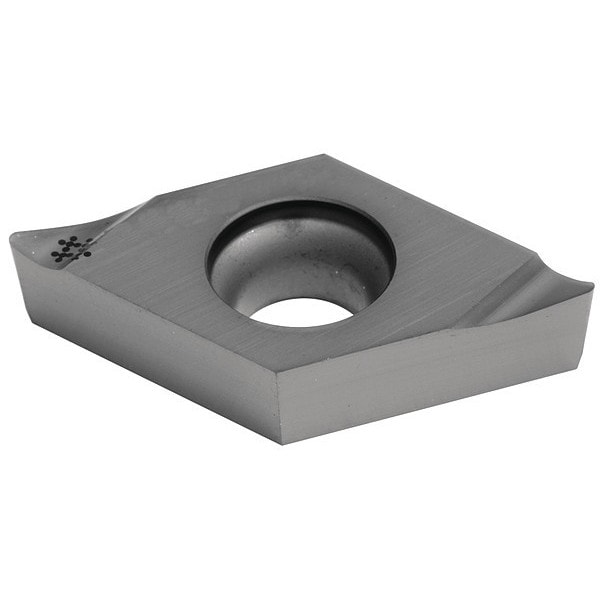

Sumitomo Diamond Turning Insert, Diamond, 2, DCGT, .2 DCGT21.50LFY-AC5015S - main

Diamond Turning Insert, Diamond, 2, DCGT, .2

  • Mfr # DCGT21.50LFY-AC5015S

  • Zoro # G7512502

product price: $13.75
/ea
Sold in multiples of 10 for $137.50

Key Features

Insert Shape
Diamond
Insert Style
DCGT
Inscribed Circle
2
Insert Size
21.50
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DCGT21.50LFY-AC5015S
Zoro #
G7512502
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.50
Corner Radius
.2
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCGT
Inscribed Circle
2
Chip-Breaker
Yes
Rake
15 Degrees
ISO Number
DCGT070201L-FY
Relief Angle
7 Degrees
For Use With
Toolholders, Boring Bars
Cutting Direction
Neutral
Mounting Style
Screw
Included Angle
55 Degrees
Manufacturer Grade
AC5015S
Finish - Machining
AlTiSiN
Insert Holding Type
Countersink Hole
Number of Cutting Edges
2
Cutting Application
Turning
Features
Excellent Wear Resistance
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Shape
Rhombic
Primary Material Application ISO Code
K, M, N, P, S
Clearance Angle
7 Degrees
Chip-Breaker Style
Single
Material - Machining
Carbide
Measurement System
Fractional Inch
Chip-Breaker Code
LFY
ANSI Code
DCGT21.50LFY

Description

Diamond Turning Insert, Chip-Breaker Code LFY, Inscribed Circle 1/4 in, AlTiSiN, ANSI Code DCGT21.50LFY, Chip-Breaker Style Single, Clearance Angle 7 Degrees
