  11. Diamond Turning Insert, Diamond, 2, DCGT, .5, Carbide

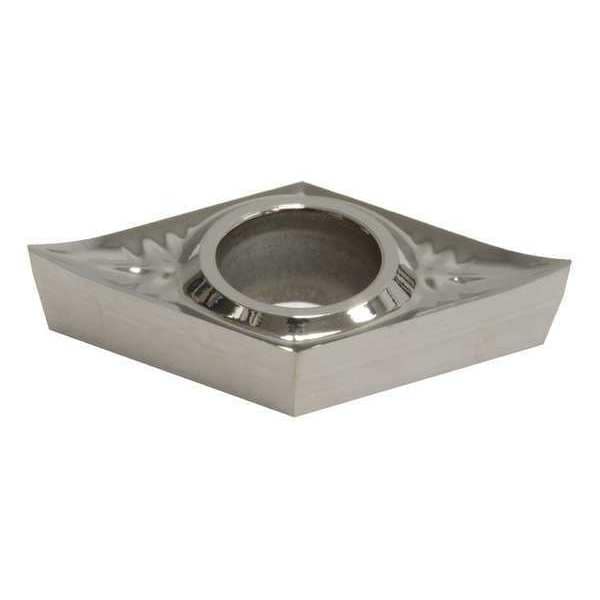

Sumitomo Diamond Turning Insert, Diamond, 2, DCGT, .5, Carbide DCGT21.50.5NAG-H1 - main

Diamond Turning Insert, Diamond, 2, DCGT, .5, Carbide

  • Mfr # DCGT21.50.5NAG-H1

  • Zoro # G6325606

product price: $14.15
/ea
Sold in multiples of 10 for $141.50

Key Features

Insert Shape
Diamond
Insert Style
DCGT
Inscribed Circle
2
Insert Size
21.50.5
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCGT21.50.5NAG-H1
Zoro #
G6325606
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.50.5
Corner Radius
.5
Insert Thickness
0.0940"
Nose Radius
0.0156"
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCGT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
H1
Insert Material
Carbide
Insert Application
Finishing
Rake
20 Degrees
ISO Number
DCGT070202N-AG
For Use With
Toolholders, Boring Bars
Mounting Style
Screw-On
Cutting Direction
Neutral
Super Alloy (S) Compatibility
Yes
ANSI Number
DCGT21.50.5NAG-H1
Coating
Uncoated
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
Yes
No. of Edges
2
Stainless (M) Compatibility
No
Cast Iron (K) Compatibility
No
Steel (P) Compatibility
No
Workpiece Compatibility
Nonferrous (N), Super Alloy (S)
Chip-Breaker Code
NAG
Primary Material Application ISO Code
K, N
Measurement System
Fractional Inch
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium
Manufacturer Grade
H1
Included Angle
55 Degrees
Number of Cutting Edges
2
Cutting Application
Turning
Shape
Rhombic
Clearance Angle
7 Degrees
ANSI Code
DCGT21.50.5NAG
Insert Holding Type
Countersink Hole
Chip-Breaker Style
Single
Material - Machining
Carbide
Finish - Machining
Bright (Uncoated)
Material
Carbide
Style
DCGT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code NAG, Inscribed Circle 1/4 in, Bright (Uncoated), ANSI Code DCGT21.50.5NAG, Chip-Breaker Style Single, Clearance Angle 7 Degrees
