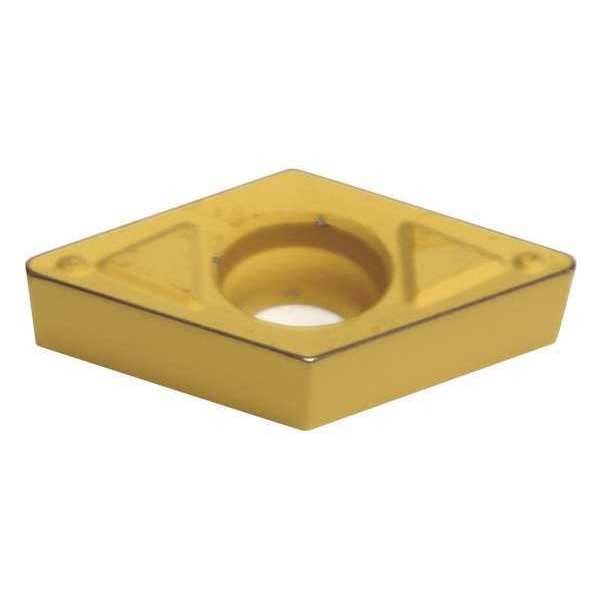

Diamond Turning Insert, Diamond, 2, DCMT, 1, Carbide

Mfr # DCMT21.51ENK-AC830P
Zoro # G6324468

16.69

Sold in multiples of 10 for $166.90

Key Features

Insert Shape

Diamond

Insert Style

DCMT

Inscribed Circle

1/4 in

Insert Size

21.51

Chip-Breaker

Yes

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: DCMT21.51ENK-AC830P
Zoro #: G6324468
UPC #: -
Country of Origin: Japan

Dimensions

Insert Size: 21.51
Corner Radius: 1/64 in
Mounting Hole Dia.: 0.110"
Insert Thickness: 0.0940"
Nose Radius: 0.0156"
Thickness: 3/32 in

Details

Item: Diamond Turning Insert
Insert Shape: Diamond
Insert Style: DCMT
Inscribed Circle: 1/4 in
Chip-Breaker: Yes
Grade: AC830P
Insert Material: Carbide
Insert Application: Finishing
Rake: 8 Degrees
ISO Number: DCMT070204N-SK
No. of Edges: 2
Steel (P) Compatibility: Yes
ANSI Number: DCMT21.51ENK-AC830P
Non Ferrous (N) Compatibility: No
Coating: CVD
Cutting Direction: Neutral
Hardened (H) Compatibility: No
Super Alloy (S) Compatibility: No
Workpiece Compatibility: Cast Iron (K), Stainless (M), Steel (P)
Stainless (M) Compatibility: Yes
For Use With: Toolholders, Boring Bars
Mounting Style: Top and Hole Clamping
Cast Iron (K) Compatibility: Yes
ANSI Code: DCMT21.51ENK
Shape: Rhombic
Cutting Application: Turning
Primary Material Application ISO Code: P
Insert Holding Type: Countersink Hole
Number of Cutting Edges: 2
Material - Machining: Carbide
Primary Material Application: Steel
Coating Process: CVD
Manufacturer Grade: AC830P
Finish - Machining: Al203+TiCN
Chip-Breaker Style: Single
Measurement System: Fractional Inch
Chip-Breaker Code: ENK
Clearance Angle: 7 Degrees
Included Angle: 55 Degrees
Features: Excellent Wear Resistance
Material: Carbide
Application: Finishing
Style: DCMT

Description

Diamond Turning Insert, Chip-Breaker Code ENK, Inscribed Circle 1/4 in, Al203+TiCN, ANSI Code DCMT21.51ENK, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
