  11. Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide

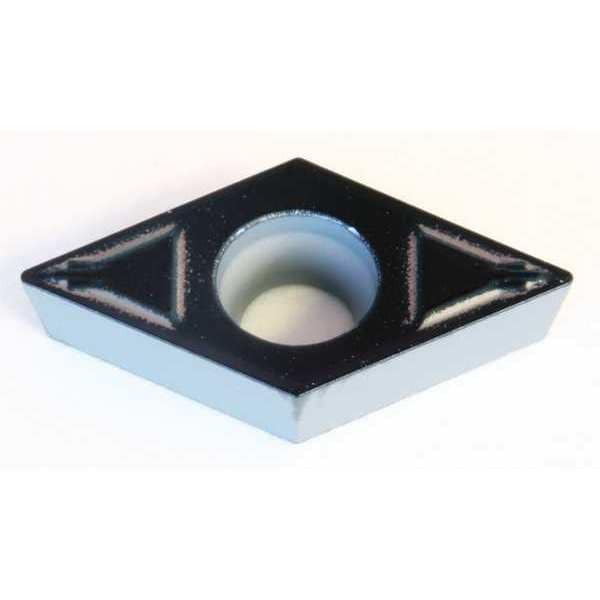

Sumitomo Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide DCMT21.52ELB-AC8025P - main

Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide

  • Mfr # DCMT21.52ELB-AC8025P

  • Zoro # G6324337

product price: $14.35
/ea
Sold in multiples of 10 for $143.50

Key Features

Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
2
Insert Size
21.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCMT21.52ELB-AC8025P
Zoro #
G6324337
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.52
Corner Radius
2
Nose Radius
0.0313"
Insert Thickness
0.0940"
Mounting Hole Dia.
0.110"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
DCMT070208N-LB
ANSI Number
DCMT21.52ELB-AC8025P
Coating
CVD
Mounting Style
Screw-On
Hardened (H) Compatibility
No
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
No. of Edges
2
Primary Material Application ISO Code
P25
Primary Material Application
Steel
Included Angle
55 Degrees
Clearance Angle
7 Degrees
Chip-Breaker Style
Single
ANSI Code
DCMT21.52ELB
Measurement System
Fractional Inch
Number of Cutting Edges
2
Chip-Breaker Code
ELB
Features
Adhesion Resistant, Chipping Resistant
Insert Holding Type
Countersink Hole
Finish - Machining
Absotech Platinum
Manufacturer Grade
AC8025P
Coating Process
CVD
Material - Machining
Carbide
Cutting Application
Turning
Shape
Rhombic
Material
Carbide
Application
Finishing
Style
DCMT

Description

Diamond Turning Insert, Chip-Breaker Code ELB, Inscribed Circle 1/4 in, Absotech Platinum, ANSI Code DCMT21.52ELB, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
