  11. Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide

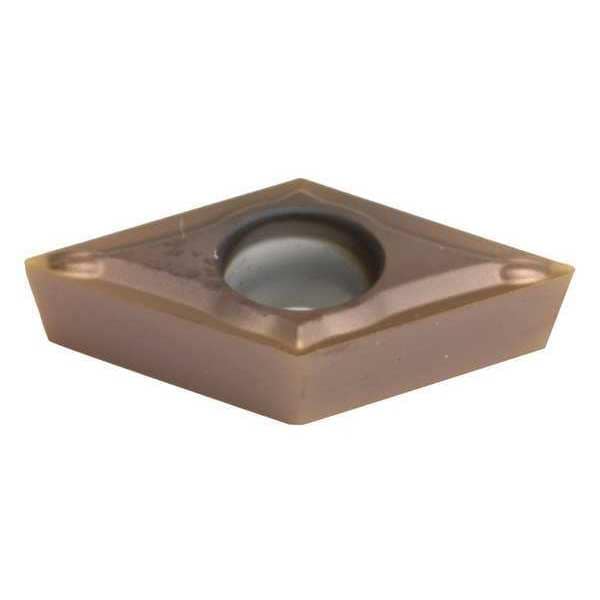

Sumitomo Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide DCMT21.52ESU-AC810P - main

Diamond Turning Insert, Diamond, 2, DCMT, 2, Carbide

  • Mfr # DCMT21.52ESU-AC810P

  • Zoro # G6324276

product price: $11.59
/ea
Sold in multiples of 10 for $115.90

Key Features

Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
2
Insert Size
21.52
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DCMT21.52ESU-AC810P
Zoro #
G6324276
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
21.52
Corner Radius
2
Mounting Hole Dia.
0.110"
Insert Thickness
0.0940"
Nose Radius
0.0313"
Thickness
1.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
2
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
DCMT070208NSU
Super Alloy (S) Compatibility
No
Mounting Style
Top and Hole Clamping
No. of Edges
2
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Coating
CVD
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
ANSI Number
DCMT21.52ESU-AC810P
Number of Cutting Edges
2
Manufacturer Grade
AC810P
ANSI Code
DCMT21.52ESU
Insert Holding Type
Countersink Hole
Cutting Application
Turning
Finish - Machining
Al203+TiCN
Primary Material Application
Steel
Chip-Breaker Style
Single
Features
Excellent Wear Resistance
Shape
Rhombic
Primary Material Application ISO Code
P10
Included Angle
55 Degrees
Clearance Angle
7 Degrees
Chip-Breaker Code
ESU
Measurement System
Fractional Inch
Material - Machining
Carbide
Coating Process
CVD
Material
Carbide
Application
Finishing
Style
DCMT

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/4 in, Al203+TiCN, ANSI Code DCMT21.52ESU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
