  11. Diamond Turning Insert, Diamond, 3, CCGT, .2, Carbide

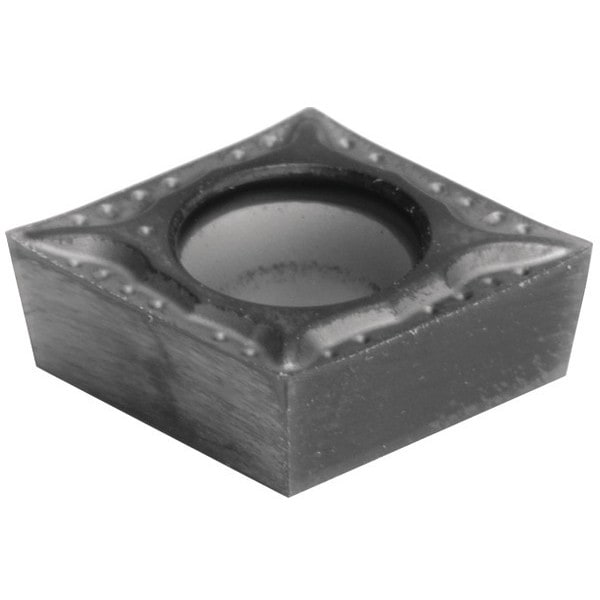

Sumitomo Diamond Turning Insert, Diamond, 3, CCGT, .2, Carbide CCGT32.50MESI-AC5015S - main

Diamond Turning Insert, Diamond, 3, CCGT, .2, Carbide

  • Mfr # CCGT32.50MESI-AC5015S

  • Zoro # G7549877

product price: $11.25
/ea
Sold in multiples of 10 for $112.50

Key Features

Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
3
Insert Size
32.50
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCGT32.50MESI-AC5015S
Zoro #
G7549877
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.50
Corner Radius
.2
Mounting Hole Dia.
0.173"
Nose Radius
0.003"
Insert Thickness
0.156"
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC5015S
Insert Material
Carbide
Insert Application
Semi-Finishing
Rake
15 Degrees
ISO Number
CCGT09T301MN-SI
Cast Iron (K) Compatibility
Yes
Coating
PVD
No. of Edges
2
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
ANSI Number
CCGT32.50MESI
Non Ferrous (N) Compatibility
Yes
Hardened (H) Compatibility
No
Relief Angle
7 Degrees
Super Alloy (S) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Mounting Style
Screw
Cutting Direction
Neutral
Stainless (M) Compatibility
Yes
Chip-Breaker Code
MESI
Primary Material Application ISO Code
K, M, N, P, S
Included Angle
80 Degrees
Measurement System
Fractional Inch
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Features
Excellent Wear Resistance
Clearance Angle
7 Degrees
ANSI Code
CCGT32.50MESI
Number of Cutting Edges
2
Cutting Application
Turning
Chip-Breaker Style
Single
Manufacturer Grade
AC5015S
Insert Holding Type
Countersink Hole
Material - Machining
Carbide
Finish - Machining
AlTiSiN
Shape
Rhombic
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 3/8 in, AlTiSiN, ANSI Code CCGT32.50MESI, Chip-Breaker Style Single, Clearance Angle 7 Degrees
