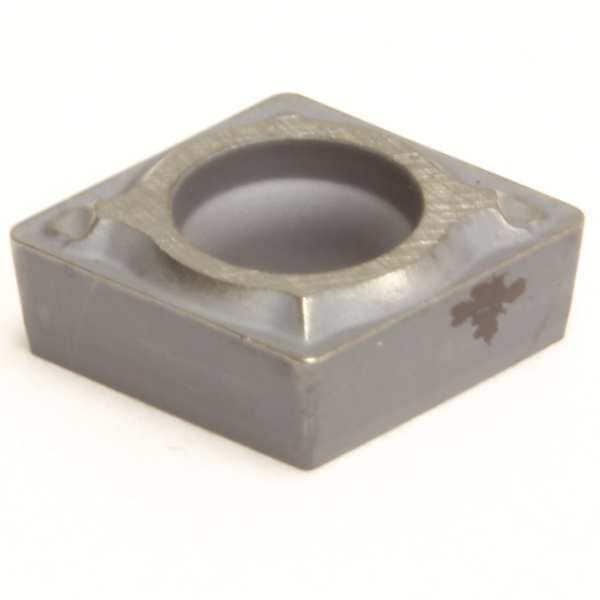

Sumitomo Diamond Turning Insert, Diamond, 3, CCMT, 1, Cermet CCMT32.51EFP-T1500A - main

Diamond Turning Insert, Diamond, 3, CCMT, 1, Cermet

  • Mfr # CCMT32.51EFP-T1500A

  • Zoro # G6332378

product price: $7.45
/ea
Sold in multiples of 10 for $74.50

Key Features

Insert Shape
Diamond
Insert Style
CCMT
Inscribed Circle
3
Insert Size
32.51
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CCMT32.51EFP-T1500A
Zoro #
G6332378
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.51
Corner Radius
1
Mounting Hole Dia.
0.173"
Insert Thickness
0.1560"
Nose Radius
0.0156"
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
10 Degrees
ISO Number
CCMT09T304N-FP
Workpiece Compatibility
Stainless (M), Steel (P)
Non Ferrous (N) Compatibility
No
ANSI Number
CCMT32.51EFP-T1500A
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
Mounting Style
Screw-On
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Coating
CVD
Cast Iron (K) Compatibility
No
No. of Edges
4
Stainless (M) Compatibility
Yes
Chip-Breaker Style
Single
Chip-Breaker Code
EFP
Primary Material Application
Steel
Cutting Application
Turning
Measurement System
Fractional Inch
Clearance Angle
7 Degrees
Features
Excellent Wear Resistance and Fracture Resistance
Primary Material Application ISO Code
P05 - P30
Number of Cutting Edges
4
Material - Machining
Cermet
Insert Holding Type
Countersink Hole
Included Angle
80 Degrees
ANSI Code
CCMT32.51EFP
Manufacturer Grade
T1500A
Shape
Rhombic
Material
Cermet
Style
CCMT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code EFP, Inscribed Circle 3/8 in, ANSI Code CCMT32.51EFP, Chip-Breaker Style Single, Clearance Angle 7 Degrees
