  6. Diamond Turning Insert, Diamond, 3, DCMT, 2, Carbide

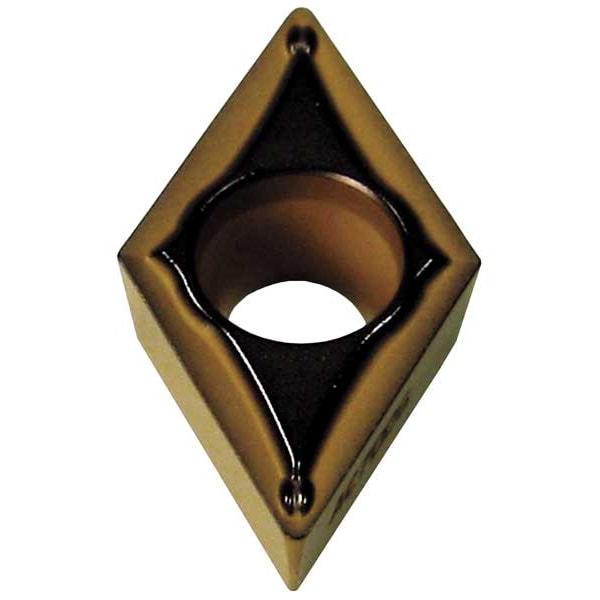

Sumitomo Diamond Turning Insert, Diamond, 3, DCMT, 2, Carbide DCMT32.52ESU-AC700G - main

Diamond Turning Insert, Diamond, 3, DCMT, 2, Carbide

  • Mfr # DCMT32.52ESU-AC700G

  • Zoro # G3763347

product price:  $17.49
/ea
Sold in multiples of 10 for $174.90

Key Features

Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
3
Insert Size
32.52
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DCMT32.52ESU-AC700G
Zoro #
G3763347
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
32.52
Corner Radius
2
Nose Radius
0.0312"
Insert Thickness
0.156"
Mounting Hole Dia.
0.173
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DCMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC700G
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
DCMT11T308NSU
Non Ferrous (N) Compatibility
No
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Relief Angle
7 Degrees
ANSI Number
DCMT32.52ESU-AC700G
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K)
For Use With
SDAC, PDJC Toolholders, A-SDUC Boring Bars
Mounting Style
Screw-On
Stainless (M) Compatibility
No
No. of Edges
2
Coating
Super FF TiCN/Al2O3/TiN CVD
Steel (P) Compatibility
No
Super Alloy (S) Compatibility
No
Measurement System
Fractional Inch
Chip-Breaker Code
ESU
Manufacturer Grade
AC700G
Coating Process
CVD
Material - Machining
Carbide
Number of Cutting Edges
2
Cutting Application
Turning
Finish - Machining
Al203+TiCN
Primary Material Application
Steel
Clearance Angle
7 Degrees
Shape
Rhombic
Insert Holding Type
Countersink Hole
Features
Excellent Wear Resistance
Primary Material Application ISO Code
P
ANSI Code
DCMT32.52ESU
Chip-Breaker Style
Single
Included Angle
55 Degrees
Material
Carbide
Style
DCMT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 3/8 in, Al203+TiCN, ANSI Code DCMT32.52ESU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
