  11. Diamond Turning Insert, Diamond, 3, DNMG, 2, Carbide

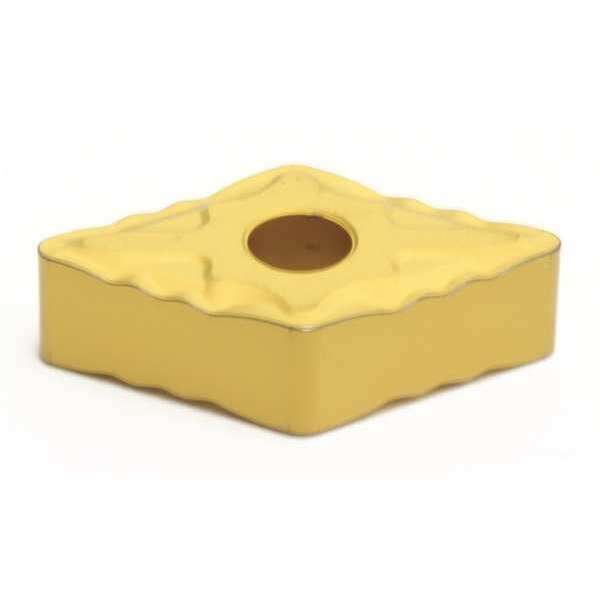

Sumitomo Diamond Turning Insert, Diamond, 3, DNMG, 2, Carbide DNMG332ESE-AC810P - main

Diamond Turning Insert, Diamond, 3, DNMG, 2, Carbide

  • Mfr # DNMG332ESE-AC810P

  • Zoro # G6323101

product price: $12.65
/ea
Sold in multiples of 10 for $126.50

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG332ESE-AC810P
Zoro #
G6323101
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.0313"
Mounting Hole Dia.
0.150"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Finishing
Rake
Positive
ISO Number
DNMG110408N-SE
ANSI Number
DNMG332ESE-AC810P
Cast Iron (K) Compatibility
Yes
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Coating
Cermet
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Hardened (H) Compatibility
No
No. of Edges
2
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Mounting Style
Top and Hole Clamping
Cutting Application
Turning
Shape
Rhombic
Material - Machining
Carbide
Coating Process
CVD
ANSI Code
DNMG332ESE
Number of Cutting Edges
2
Insert Holding Type
Straight Hole
Primary Material Application
Steel
Chip-Breaker Style
Double
Included Angle
55 Degrees
Features
Excellent Wear Resistance
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Chip-Breaker Code
ESE
Primary Material Application ISO Code
P10
Manufacturer Grade
AC810P
Finish - Machining
Al203+TiCN
Material
Carbide
Application
Finishing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code ESE, Inscribed Circle 3/8 in, Al203+TiCN, ANSI Code DNMG332ESE, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
