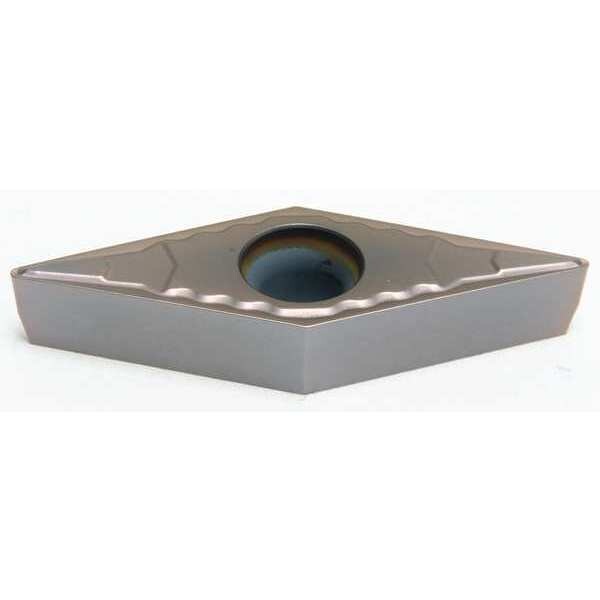

Sumitomo Diamond Turning Insert, Diamond, 3, VBMT, 1, Cermet VBMT331ELU-T1500Z - main

Diamond Turning Insert, Diamond, 3, VBMT, 1, Cermet

  • Mfr # VBMT331ELU-T1500Z

  • Zoro # G6307957

product price: $17.09
/ea
Sold in multiples of 10 for $170.90

Key Features

Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VBMT331ELU-T1500Z
Zoro #
G6307957
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Mounting Hole Dia.
0.173"
Insert Thickness
0.1875"
Nose Radius
0.0156"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VBMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
15 Degrees
ISO Number
VBMT160404NLU
ANSI Number
VBMT331ELU-T1500Z
Coating
CVD
Super Alloy (S) Compatibility
No
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Stainless (M), Steel (P)
Non Ferrous (N) Compatibility
No
Mounting Style
Screw-On
Cutting Direction
Neutral
No. of Edges
2
Cast Iron (K) Compatibility
No
Stainless (M) Compatibility
Yes
Number of Cutting Edges
2
Included Angle
35 Degrees
Coating Process
PVD
Features
Wear Resistant
Insert Holding Type
Countersink Hole
Chip-Breaker Style
Single
Shape
Rhombic
Measurement System
Fractional Inch
ANSI Code
VBMT331ELU
Clearance Angle
5 Degrees
Primary Material Application ISO Code
P
Chip-Breaker Code
ELU
Cutting Application
Turning
Manufacturer Grade
T1500Z
Primary Material Application
Steel
Material - Machining
Cermet
Material
Cermet
Style
VBMT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 3/8 in, ANSI Code VBMT331ELU, Chip-Breaker Style Single, Clearance Angle 5 Degrees , Coating Process PVD
