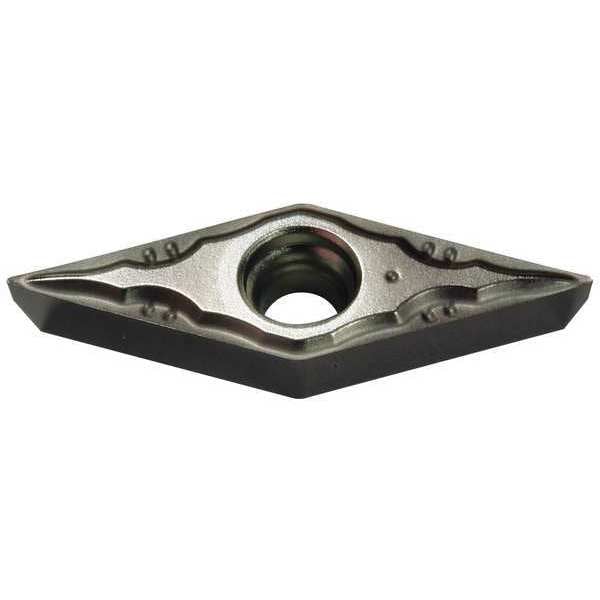

Sumitomo Diamond Turning Insert, Diamond, 3, VCGT, 1, Cermet VCGT331MESI-T1500A - main

Diamond Turning Insert, Diamond, 3, VCGT, 1, Cermet

  • Mfr # VCGT331MESI-T1500A

  • Zoro # G6380687

product price: $18.49
/ea
Sold in multiples of 10 for $184.90

Key Features

Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCGT331MESI-T1500A
Zoro #
G6380687
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Insert Thickness
0.1875"
Nose Radius
0.0156"
Mounting Hole Dia.
0.173"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VCGT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Roughing
Rake
0 Degrees
ISO Number
VCGT160404MN-SI
Coating
CBN
Hardened (H) Compatibility
No
Stainless (M) Compatibility
Yes
ANSI Number
VCGT331MESI-T1500A
For Use With
Toolholders, Boring Bars
Mounting Style
Screw-On
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
No. of Edges
2
Super Alloy (S) Compatibility
No
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Cast Iron (K) Compatibility
No
Clearance Angle
7 Degrees
ANSI Code
VCGT331MESI
Chip-Breaker Code
MESI
Insert Holding Type
Countersink Hole
Measurement System
Fractional Inch
Number of Cutting Edges
2
Primary Material Application ISO Code
P05 - P30
Shape
Rhombic
Cutting Application
Turning
Included Angle
35 Degrees
Primary Material Application
Steel
Chip-Breaker Style
Single
Manufacturer Grade
T1500A
Features
Excellent Wear Resistance and Fracture Resistance
Material - Machining
Cermet
Material
Cermet
Style
VCGT
Application
Roughing

Description

Diamond Turning Insert, Chip-Breaker Code MESI, Inscribed Circle 3/8 in, ANSI Code VCGT331MESI, Chip-Breaker Style Single, Clearance Angle 7 Degrees
