  11. Diamond Turning Insert, Diamond, 3, VCMT, 1, Carbide

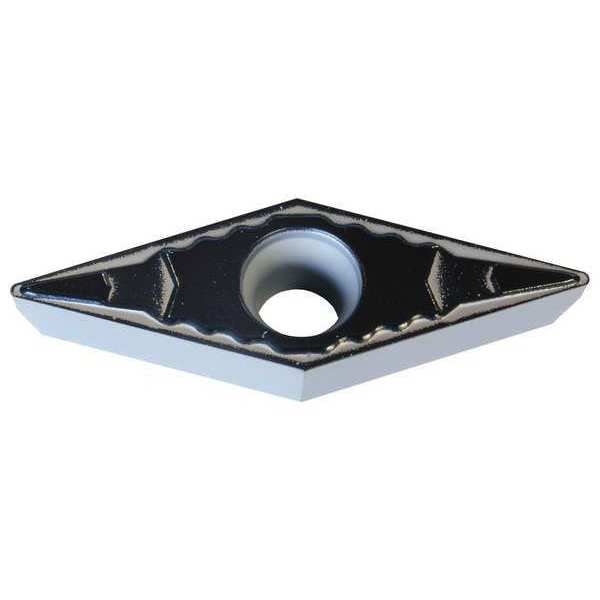

Sumitomo Diamond Turning Insert, Diamond, 3, VCMT, 1, Carbide VCMT331ELU-AC8025P - main

Diamond Turning Insert, Diamond, 3, VCMT, 1, Carbide

  • Mfr # VCMT331ELU-AC8025P

  • Zoro # G6380599

product price: $24.99
/ea
Sold in multiples of 10 for $249.90

Key Features

Insert Shape
Diamond
Insert Style
VCMT
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VCMT331ELU-AC8025P
Zoro #
G6380599
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Mounting Hole Dia.
0.173"
Insert Thickness
0.1875"
Nose Radius
0.0156"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VCMT
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
15 Degrees
ISO Number
VCMT160404NLU
Hardened (H) Compatibility
No
Mounting Style
Screw-On
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
ANSI Number
VCMT331ELU-AC8025P
Non Ferrous (N) Compatibility
No
No. of Edges
2
Super Alloy (S) Compatibility
No
Coating
CVD
Shape
Rhombic
Finish - Machining
Absotech Platinum
Material - Machining
Carbide
Features
Adhesion Resistant, Chipping Resistant
Primary Material Application ISO Code
P25
Included Angle
35 Degrees
Number of Cutting Edges
2
Clearance Angle
7 Degrees
Cutting Application
Turning
Chip-Breaker Style
Single
Coating Process
CVD
Insert Holding Type
Countersink Hole
Primary Material Application
Steel
Measurement System
Fractional Inch
ANSI Code
VCMT331ELU
Chip-Breaker Code
ELU
Manufacturer Grade
AC8025P
Material
Carbide
Style
VCMT
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ELU, Inscribed Circle 3/8 in, Absotech Platinum, ANSI Code VCMT331ELU, Chip-Breaker Style Single, Clearance Angle 7 Degrees , Coating Process CVD
