  11. Diamond Turning Insert, Diamond, 3, VNGA, 2, CBN

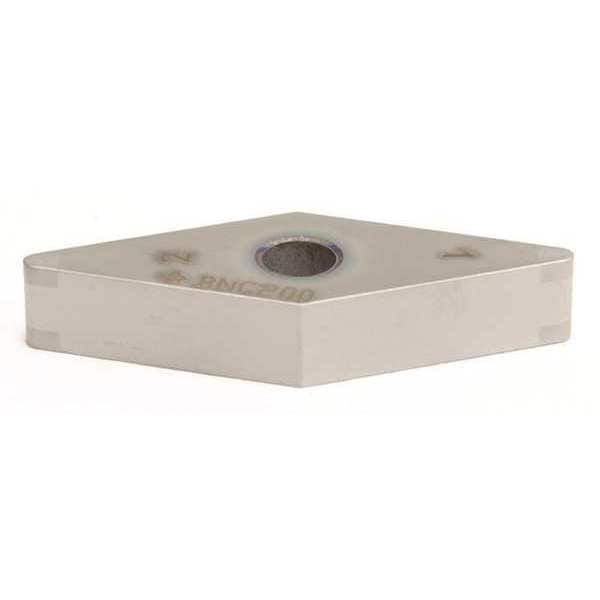

Sumitomo Diamond Turning Insert, Diamond, 3, VNGA, 2, CBN 4NCVNGA332-BNC2020 - main

Diamond Turning Insert, Diamond, 3, VNGA, 2, CBN

  • Mfr # 4NCVNGA332-BNC2020

  • Zoro # G6370841

product price: $133.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
VNGA
Inscribed Circle
3
Insert Size
332
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4NCVNGA332-BNC2020
Zoro #
G6370841
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.0313"
Mounting Hole Dia.
0.150"
Insert Thickness
0.1875"
Depth of Cut
0.0150 in
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNGA
Inscribed Circle
3
Chip-Breaker
No
Grade
BNC2020
Insert Material
CBN
Insert Application
Finishing
Rake
Negative
ISO Number
4NC-VNGA160408
Stainless (M) Compatibility
No
Cutting Direction
Neutral
Mounting Style
Top and Hole Clamping
For Use With
Toolholders, Boring Bars
No. of Edges
4
Hardened (H) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Hardened (H), Steel (P)
Cast Iron (K) Compatibility
No
Coating
CVD
ANSI Number
4NCVNGA332-BNC2020
Steel (P) Compatibility
Yes
Super Alloy (S) Compatibility
No
Insert Holding Type
Straight Hole
ANSI Code
4NC-VNGA332
Manufacturer Grade
BNC2020
Primary Material Application
Hardened Steel
Clearance Angle
0 Degrees
Shape
Rhombic
Primary Material Application ISO Code
H20 - H30
Features
Excellent Wear Resistance and Breakage Resistance
Material - Machining
CBN
Cutting Application
Turning
Number of Cutting Edges
4
Measurement System
Fractional Inch
Included Angle
35 Degrees
Material
CBN
Application
Finishing
Style
VNGA

Description

Diamond Turning Insert, Inscribed Circle 3/8 in, ANSI Code 4NC-VNGA332, Clearance Angle 0 Degrees
