  11. Diamond Turning Insert, Diamond, 3, VNMA, 2, PCD

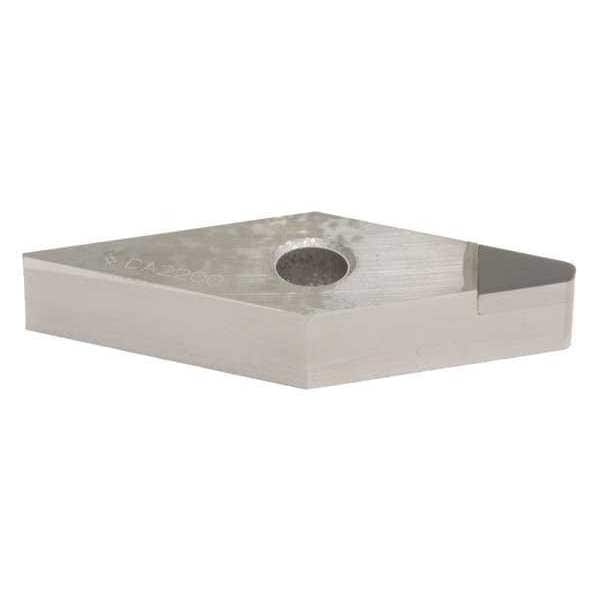

Sumitomo Diamond Turning Insert, Diamond, 3, VNMA, 2, PCD NFVNMA332-DA1000 - main

Diamond Turning Insert, Diamond, 3, VNMA, 2, PCD

  • Mfr # NFVNMA332-DA1000

  • Zoro # G6306496

product price: $85.55
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
VNMA
Inscribed Circle
3
Insert Size
332
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
NFVNMA332-DA1000
Zoro #
G6306496
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
332
Corner Radius
2
Insert Thickness
0.1875"
Nose Radius
0.0313"
Mounting Hole Dia.
0.150"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMA
Inscribed Circle
3
Chip-Breaker
No
Grade
DA1000
Insert Material
PCD
Insert Application
Finishing
Rake
0 Degrees
ISO Number
NF-VNMA160408
Mounting Style
Top and Hole Clamping
No. of Edges
1
Steel (P) Compatibility
No
For Use With
Toolholders, Boring Bars
Workpiece Compatibility
Nonferrous (N), Super Alloy (S)
Hardened (H) Compatibility
No
Coating
CVD
Stainless (M) Compatibility
No
Super Alloy (S) Compatibility
Yes
Cast Iron (K) Compatibility
No
Cutting Direction
Neutral
ANSI Number
NFVNMA332-DA1000
Non Ferrous (N) Compatibility
Yes
Included Angle
35 Degrees
Material - Machining
Polycrystalline Diamond
Primary Material Application ISO Code
N
Manufacturer Grade
DA1000
Insert Holding Type
Straight Hole
Features
Excellent Wear Resistance and Fracture Resistance
Primary Material Application
Aluminum, Brass, Bronze, Copper, Magnesium
Number of Cutting Edges
1
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Shape
Rhombic
Cutting Application
Turning
ANSI Code
NFVNMA332
Material
PCD
Style
VNMA
Application
Finishing

Description

Diamond Turning Insert, Inscribed Circle 3/8 in, ANSI Code NFVNMA332, Clearance Angle 0 Degrees
