  11. Diamond Turning Insert, Diamond, 3, VNMG, 1, Cermet

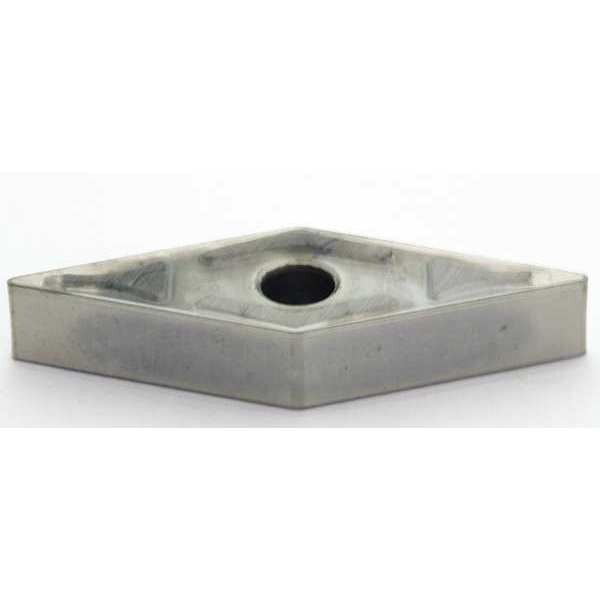

Sumitomo Diamond Turning Insert, Diamond, 3, VNMG, 1, Cermet VNMG331EGU-T1500A - main

Diamond Turning Insert, Diamond, 3, VNMG, 1, Cermet

  • Mfr # VNMG331EGU-T1500A

  • Zoro # G6379950

product price: $11.69
/ea
Sold in multiples of 10 for $116.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
331
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG331EGU-T1500A
Zoro #
G6379950
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
331
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.150"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Medium
Rake
Positive
ISO Number
VNMG160404NGU
Steel (P) Compatibility
Yes
Mounting Style
Top and Hole Clamping
Coating
CVD
ANSI Number
VNMG331EGU-T1500A
Workpiece Compatibility
Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Cast Iron (K) Compatibility
No
No. of Edges
2
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Cutting Application
Turning
Primary Material Application
Steel
Features
Excellent Wear Resistance and Fracture Resistance
ANSI Code
VNMG331EGU
Included Angle
35 Degrees
Primary Material Application ISO Code
P05 - P30
Chip-Breaker Style
Double
Insert Holding Type
Straight Hole
Shape
Rhombic
Number of Cutting Edges
2
Manufacturer Grade
T1500A
Material - Machining
Cermet
Chip-Breaker Code
EGU
Material
Cermet
Style
VNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 3/8 in, ANSI Code VNMG331EGU, Chip-Breaker Style Double, Clearance Angle 0 Degrees
