  11. Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

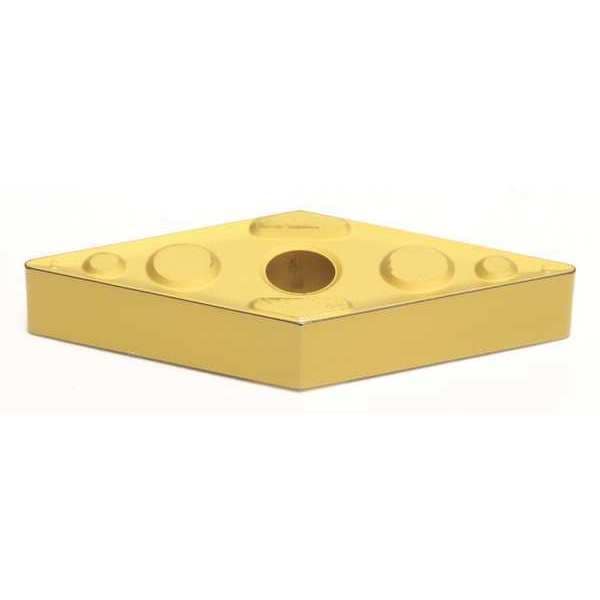

Sumitomo Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide VNMG332ENG-AC830P - main

Diamond Turning Insert, Diamond, 3, VNMG, 2, Carbide

  • Mfr # VNMG332ENG-AC830P

  • Zoro # G6379296

product price: $17.99
/ea
Sold in multiples of 10 for $179.90

Key Features

Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Insert Size
332
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VNMG332ENG-AC830P
Zoro #
G6379296
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
332
Corner Radius
2
Nose Radius
0.0313"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.150"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
VNMG
Inscribed Circle
3
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
VNMG160408N-UG
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Super Alloy (S) Compatibility
No
ANSI Number
VNMG332ENG-AC830P
Mounting Style
Top and Hole Clamping
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Coating
Cermet
For Use With
Toolholders, Boring Bars
No. of Edges
2
Manufacturer Grade
AC830P
Number of Cutting Edges
2
Measurement System
Fractional Inch
Included Angle
35 Degrees
ANSI Code
VNMG332ENG
Shape
Rhombic
Finish - Machining
Al203+TiCN
Clearance Angle
0 Degrees
Primary Material Application ISO Code
P
Coating Process
CVD
Chip-Breaker Style
Double
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Chip-Breaker Code
ENG
Features
Excellent Wear Resistance
Primary Material Application
Steel
Cutting Application
Turning
Material
Carbide
Style
VNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code ENG, Inscribed Circle 3/8 in, Al203+TiCN, ANSI Code VNMG332ENG, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
