  11. Diamond Turning Insert, Diamond, 3/8 in, CCGA, 1/64 in, CBN
This item is Discontinued.

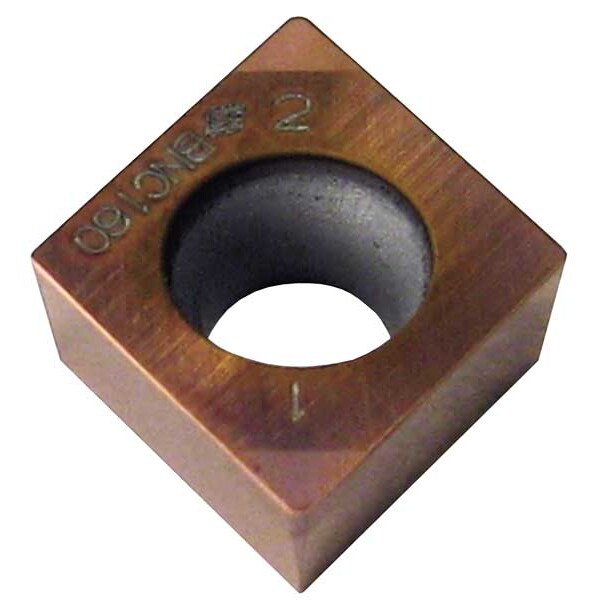

Sumitomo Diamond Turning Insert, Diamond, 3/8 in, CCGA, 1/64 in, CBN 2NCCCGA32.51-BNC100

Diamond Turning Insert, Diamond, 3/8 in, CCGA, 1/64 in, CBN (Discontinued)

  • Mfr # 2NCCCGA32.51-BNC100
  • Zoro # G5482041
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2NCCCGA32.51-BNC100
Zoro #
G5482041
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
32.51
Corner Radius
1
Mounting Hole Dia.
0.173
Insert Thickness
0.156"
Nose Radius
0.0157"
Depth of Cut
0.0150 in
Thickness
2.5

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CCGA
Inscribed Circle
3
Chip-Breaker
No
Grade
BNC100
Workpiece Compatibility
Cast Iron (K), Hardened (H), Steel (P)
Insert Material
CBN
Insert Application
Finishing
Steel (P) Compatibility
Yes
Coating
TiAlN/TiCN
Hardened (H) Compatibility
Yes
ISO Number
2NC-CCGW09T304
Mounting Style
Screw-On
No. of Edges
2
Rake
Positive
For Use With
SCLC, PCLC Toolholders, A-SCLC Boring Bars
Stainless (M) Compatibility
No
Relief Angle
7 Degrees
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
ANSI Number
2NCCCGA32.51-BNC100
Cast Iron (K) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Included Angle
80 Degrees
ANSI Code
2NC-CCGA32.51
Primary Material Application ISO Code
H
Clearance Angle
7 Degrees
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Finish - Machining
TiN
Primary Material Application
Hardened Steel
Measurement System
Fractional Inch
Features
High Wear Resistance
Number of Cutting Edges
2
Cutting Application
Turning
Manufacturer Grade
BNC100
Shape
Rhombic
Material
CBN
Style
CCGA
Application
Finishing
Insert Code
CCGA32.51

Description

Diamond Turning Insert, Inscribed Circle 3/8 in, TiN, ANSI Code 2NC-CCGA32.51, Clearance Angle 7 Degrees
