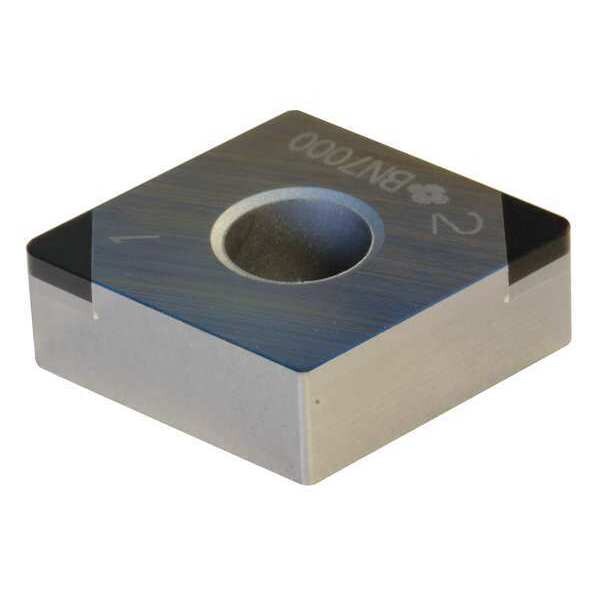

Sumitomo Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN 2MDCNGA432-BN7000 - main

Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN

  • Mfr # 2MDCNGA432-BN7000

  • Zoro # G6375507

product price: $89.29
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Insert Size
432
Chip-Breaker
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2MDCNGA432-BN7000
Zoro #
G6375507
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0313"
Depth of Cut
0.0300 in
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Chip-Breaker
No
Grade
BN7000
Insert Material
CBN
Insert Application
Finishing
Rake
Negative
ISO Number
2MD-CNGA120408
Mounting Style
Top and Hole Clamping
Super Alloy (S) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Steel (P) Compatibility
No
For Use With
Toolholders, Boring Bars
No. of Edges
2
Stainless (M) Compatibility
No
Coating
PVD
Non Ferrous (N) Compatibility
No
ANSI Number
2MDCNGA432-BN7000
Workpiece Compatibility
Cast Iron (K), Super Alloy (S)
Shape
Rhombic
Insert Holding Type
Straight Hole
Cutting Application
Turning
Material - Machining
CBN
Manufacturer Grade
BN7000
Number of Cutting Edges
2
Features
Excellent Wear Resistance and Fracture Resistance
Finish - Machining
Bright (Uncoated)
Primary Material Application ISO Code
K10 - K20, S
ANSI Code
2MD-CNGA432
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Primary Material Application
Cast Iron, Nickel, Titanium
Included Angle
80 Degrees
Material
CBN
Application
Finishing
Style
CNGA

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, Bright (Uncoated), ANSI Code 2MD-CNGA432, Clearance Angle 0 Degrees
