  11. Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN

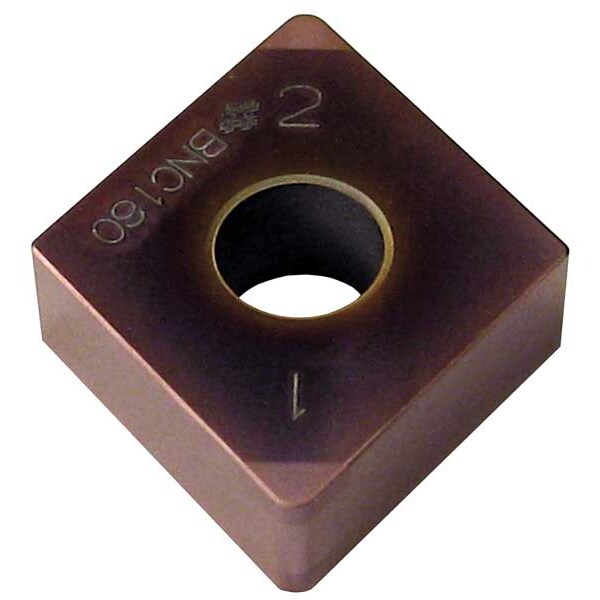

Sumitomo Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN 4NCCNGA432W-BNC100 - main

Diamond Turning Insert, Diamond, 4, CNGA, 2, CBN

  • Mfr # 4NCCNGA432W-BNC100

  • Zoro # G5582814

product price: $109.99
/ea
Free Shipping & Returns

Key Features

Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4NCCNGA432W-BNC100
Zoro #
G5582814
UPC #
-
Country of Origin
Multiple

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203
Insert Thickness
0.1875"
Nose Radius
0.0312"
Thickness
3
Depth of Cut
0.0150 in

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
4
Chip-Breaker
Yes
Grade
BNC100
Insert Material
CBN
Insert Application
Finishing
Rake
Negative
ISO Number
4NC-CNGA120408W
Mounting Style
Clamp
Relief Angle
0 Degrees
Hardened (H) Compatibility
Yes
Non Ferrous (N) Compatibility
No
ANSI Number
4NCCNGA432W-BNC100
Cast Iron (K) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Hardened (H), Steel (P)
Steel (P) Compatibility
Yes
Coating
TiAlN/TiCN
Cutting Direction
Neutral
No. of Edges
4
Super Alloy (S) Compatibility
No
For Use With
DCLN, MCLN, Toolholders, A-MCLN Boring Bars
Stainless (M) Compatibility
No
Insert Holding Type
Straight Hole
Primary Material Application
Hardened Steel
Measurement System
Fractional Inch
Finish - Machining
TiN
Manufacturer Grade
BNC100
Included Angle
80 Degrees
Features
High Wear Resistance
Cutting Application
Turning
Material - Machining
Carbide
Clearance Angle
0 Degrees
ANSI Code
4NC-CNGA432W
Number of Cutting Edges
4
Shape
Rhombic
Primary Material Application ISO Code
H
Chip-Breaker Code
W
Material
CBN
Style
CNGA
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code W, Inscribed Circle 1/2 in, TiN, ANSI Code 4NC-CNGA432W, Clearance Angle 0 Degrees
