  11. Diamond Turning Insert, Diamond, 4, CNMG, 1, Cermet

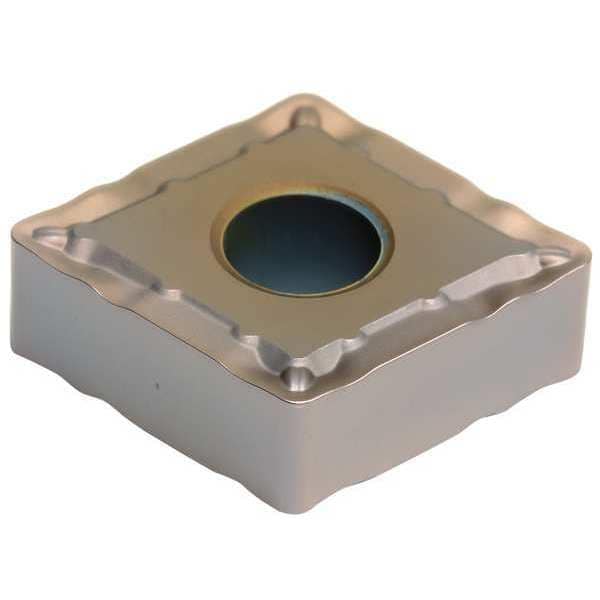

Sumitomo Diamond Turning Insert, Diamond, 4, CNMG, 1, Cermet CNMG431ESX-T1500Z - main

Diamond Turning Insert, Diamond, 4, CNMG, 1, Cermet

  • Mfr # CNMG431ESX-T1500Z

  • Zoro # G6330689

product price: $10.15
/ea
Sold in multiples of 10 for $101.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG431ESX-T1500Z
Zoro #
G6330689
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Mounting Hole Dia.
0.203"
Nose Radius
0.0156"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
Positive
ISO Number
CNMG120404N-SX
ANSI Number
CNMG431ESX-T1500Z
Hardened (H) Compatibility
No
No. of Edges
4
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Coating
CBN
Mounting Style
Top and Hole Clamping
Stainless (M) Compatibility
Yes
Non Ferrous (N) Compatibility
No
Workpiece Compatibility
Stainless (M), Steel (P)
Cast Iron (K) Compatibility
No
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Shape
Rhombic
Material - Machining
Cermet
Chip-Breaker Style
Double
Chip-Breaker Code
ESX
Primary Material Application
Steel
Features
Wear Resistant
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Coating Process
PVD
Primary Material Application ISO Code
P
Manufacturer Grade
T1500Z
Number of Cutting Edges
4
Cutting Application
Turning
ANSI Code
CNMG431ESX
Included Angle
80 Degrees
Material
Cermet
Style
CNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESX, Inscribed Circle 1/2 in, ANSI Code CNMG431ESX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process PVD
