  11. Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

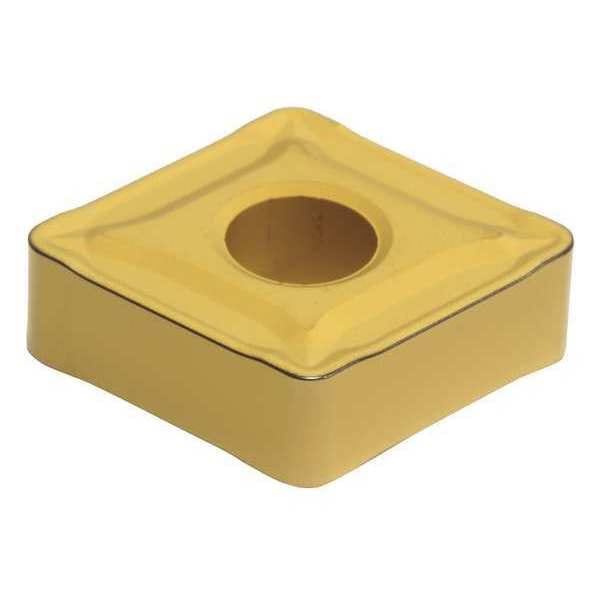

Sumitomo Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide CNMG433EMX-AC830P - main

Diamond Turning Insert, Diamond, 4, CNMG, 3, Carbide

  • Mfr # CNMG433EMX-AC830P

  • Zoro # G6329246

product price: $11.35
/ea
Sold in multiples of 10 for $113.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG433EMX-AC830P
Zoro #
G6329246
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Nose Radius
0.0469"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
CNMG120412N-MX
Coating
CVD
Mounting Style
Top and Hole Clamping
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
No. of Edges
4
Cast Iron (K) Compatibility
Yes
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
ANSI Number
CNMG433EMX-AC830P
Steel (P) Compatibility
Yes
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
Insert Holding Type
Straight Hole
Primary Material Application ISO Code
P
Clearance Angle
0 Degrees
Chip-Breaker Code
EMX
Cutting Application
Turning
Chip-Breaker Style
Double
Coating Process
CVD
Material - Machining
Carbide
Primary Material Application
Steel
Shape
Rhombic
Included Angle
80 Degrees
Manufacturer Grade
AC830P
Number of Cutting Edges
4
Measurement System
Fractional Inch
Finish - Machining
Al203+TiCN
Features
Excellent Wear Resistance
ANSI Code
CNMG433EMX
Material
Carbide
Style
CNMG
Application
Roughing

Description

Diamond Turning Insert, Chip-Breaker Code EMX, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code CNMG433EMX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
