  11. Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide

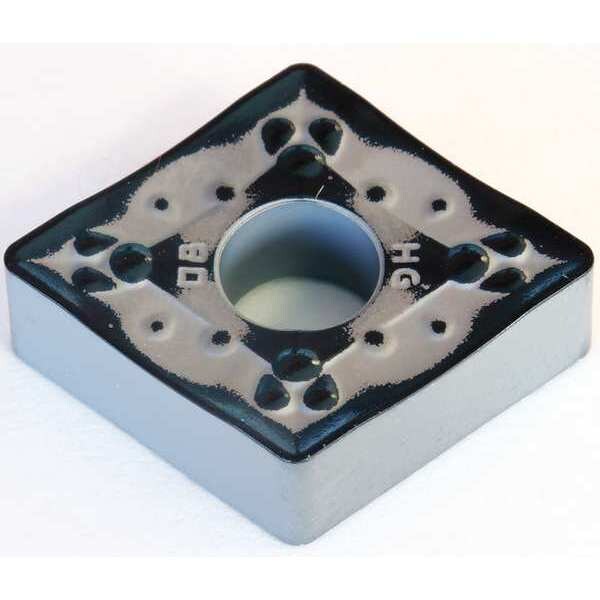

Sumitomo Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide CNMM433EHG-AC8025P - main

Diamond Turning Insert, Diamond, 4, CNMM, 3, Carbide

  • Mfr # CNMM433EHG-AC8025P

  • Zoro # G6326717

product price: $12.29
/ea
Sold in multiples of 10 for $122.90

Key Features

Insert Shape
Diamond
Insert Style
CNMM
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMM433EHG-AC8025P
Zoro #
G6326717
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Nose Radius
0.0469"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMM
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Roughing
Rake
Negative
ISO Number
CNMM120412N-HG
No. of Edges
4
Mounting Style
Top and Hole Clamping
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Steel (P) Compatibility
Yes
ANSI Number
CNMM433EHG-AC8025P
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Coating
CVD
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Features
Adhesion Resistant, Chipping Resistant
Primary Material Application
Steel
Number of Cutting Edges
4
Finish - Machining
Absotech Platinum
Material - Machining
Carbide
Chip-Breaker Code
EHG
Cutting Application
Turning
Included Angle
80 Degrees
Manufacturer Grade
AC8025P
Shape
Rhombic
Coating Process
CVD
Measurement System
Fractional Inch
Chip-Breaker Style
Single
ANSI Code
CNMM433EHG
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Primary Material Application ISO Code
P25
Material
Carbide
Style
CNMM
Application
Roughing

Description

Diamond Turning Insert, Chip-Breaker Code EHG, Inscribed Circle 1/2 in, Absotech Platinum, ANSI Code CNMM433EHG, Chip-Breaker Style Single, Clearance Angle 0 Degrees , Coating Process CVD
