  11. Diamond Turning Insert, Diamond, 4, DNJG, 1, Cermet

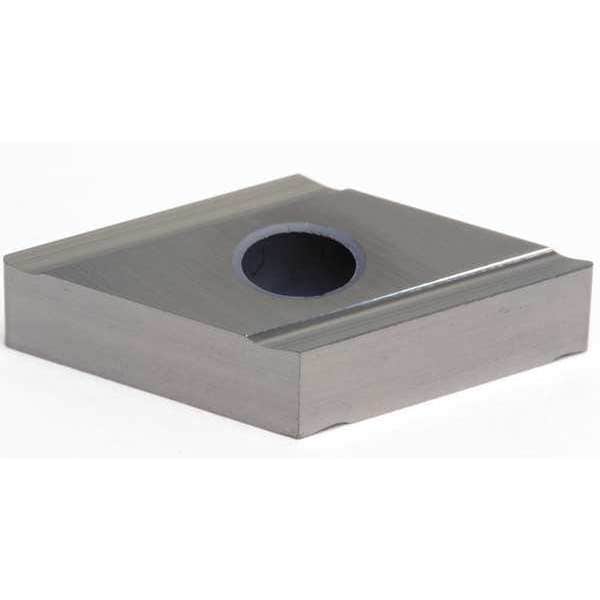

Sumitomo Diamond Turning Insert, Diamond, 4, DNJG, 1, Cermet DNJG431L-T1500A - main

Diamond Turning Insert, Diamond, 4, DNJG, 1, Cermet

  • Mfr # DNJG431L-T1500A

  • Zoro # G6323497

product price: $19.55
/ea
Sold in multiples of 10 for $195.50

Key Features

Insert Shape
Diamond
Insert Style
DNJG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNJG431L-T1500A
Zoro #
G6323497
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0156"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNJG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
Positive
ISO Number
DNGG150404L-UM
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
ANSI Number
DNJG431L-T1500A
Cast Iron (K) Compatibility
No
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Super Alloy (S) Compatibility
No
Mounting Style
Top and Hole Clamping
Workpiece Compatibility
Stainless (M), Steel (P)
Coating
PCD
Steel (P) Compatibility
Yes
No. of Edges
2
Shape
Rhombic
Clearance Angle
0 Degrees
Primary Material Application ISO Code
P05 - P30
Chip-Breaker Style
Double
Number of Cutting Edges
2
Insert Holding Type
Straight Hole
Included Angle
55 Degrees
Manufacturer Grade
T1500A
Features
Excellent Wear Resistance and Fracture Resistance
Material - Machining
Cermet
Primary Material Application
Steel
Cutting Application
Turning
Measurement System
Fractional Inch
ANSI Code
DNJG431L
Material
Cermet
Application
Finishing
Style
DNJG

Description

Diamond Turning Insert, Inscribed Circle 1/2 in, ANSI Code DNJG431L, Chip-Breaker Style Double, Clearance Angle 0 Degrees
