  11. Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

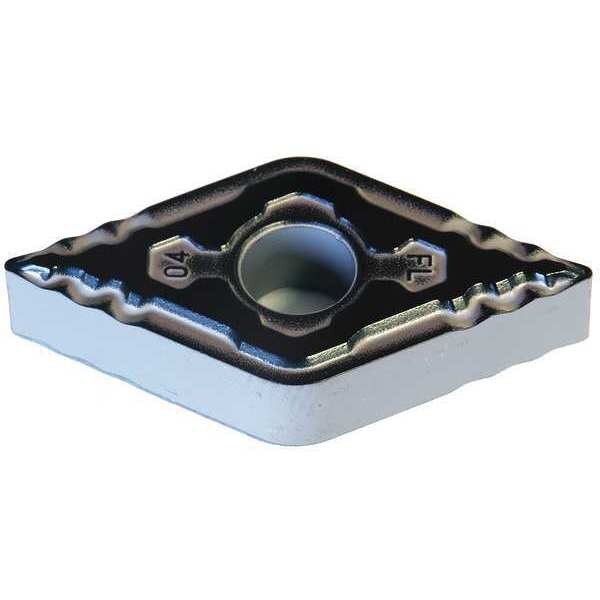

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide DNMG431EFL-AC8025P - main

Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

  • Mfr # DNMG431EFL-AC8025P

  • Zoro # G6322788

product price: $16.65
/ea
Sold in multiples of 10 for $166.50

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG431EFL-AC8025P
Zoro #
G6322788
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Insert Thickness
0.1875"
Nose Radius
0.0156"
Mounting Hole Dia.
0.203"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Finishing
Rake
Negative
ISO Number
DNMG150404N-FL
Super Alloy (S) Compatibility
No
No. of Edges
2
Mounting Style
Top and Hole Clamping
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
ANSI Number
DNMG431EFL-AC8025P
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Coating
CVD
For Use With
Toolholders, Boring Bars
Features
Adhesion Resistant, Chipping Resistant
Included Angle
55 Degrees
Chip-Breaker Code
EFL
Measurement System
Fractional Inch
Manufacturer Grade
AC8025P
Shape
Rhombic
Finish - Machining
Absotech Platinum
Insert Holding Type
Straight Hole
ANSI Code
DNMG431EFL
Primary Material Application ISO Code
P25
Primary Material Application
Steel
Chip-Breaker Style
Double
Cutting Application
Turning
Number of Cutting Edges
2
Clearance Angle
0 Degrees
Material - Machining
Carbide
Coating Process
CVD
Material
Carbide
Application
Finishing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code EFL, Inscribed Circle 1/2 in, Absotech Platinum, ANSI Code DNMG431EFL, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
