  11. Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

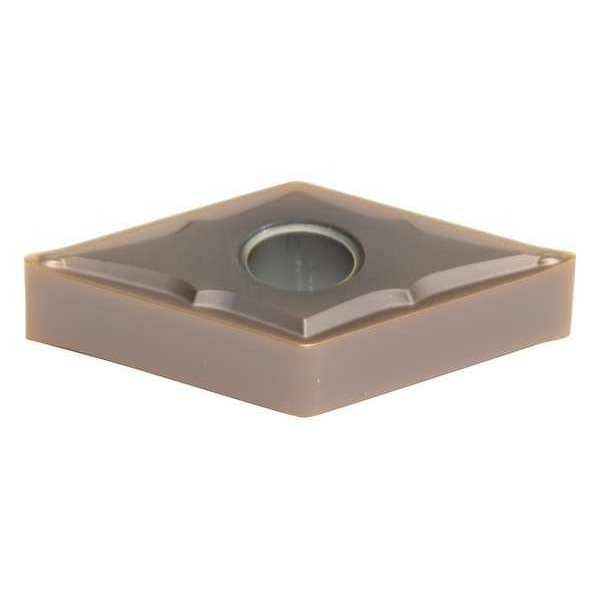

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide DNMG431ESU-AC510U - main

Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

  • Mfr # DNMG431ESU-AC510U

  • Zoro # G6322535

product price: $10.75
/ea
Sold in multiples of 10 for $107.50

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG431ESU-AC510U
Zoro #
G6322535
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Nose Radius
0.0156"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC510U
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
DNMG150404NSU
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
No
ANSI Number
DNMG431ESU-AC510U
Super Alloy (S) Compatibility
Yes
Coating
CVD
Hardened (H) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Super Alloy (S)
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Mounting Style
Top and Hole Clamping
No. of Edges
2
Insert Holding Type
Straight Hole
Shape
Rhombic
Chip-Breaker Style
Double
Primary Material Application
Cast Iron, Nickel, Titanium
Chip-Breaker Code
ESU
Coating Process
PVD
Number of Cutting Edges
2
Primary Material Application ISO Code
K, S
Manufacturer Grade
AC510U
Clearance Angle
0 Degrees
Included Angle
55 Degrees
Finish - Machining
TiAlN+AlCrN
Features
Excellent Fracture Resistance
Cutting Application
Turning
Material - Machining
Carbide
Measurement System
Fractional Inch
ANSI Code
DNMG431ESU
Material
Carbide
Application
Finishing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, TiAlN+AlCrN, ANSI Code DNMG431ESU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process PVD
