  11. Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

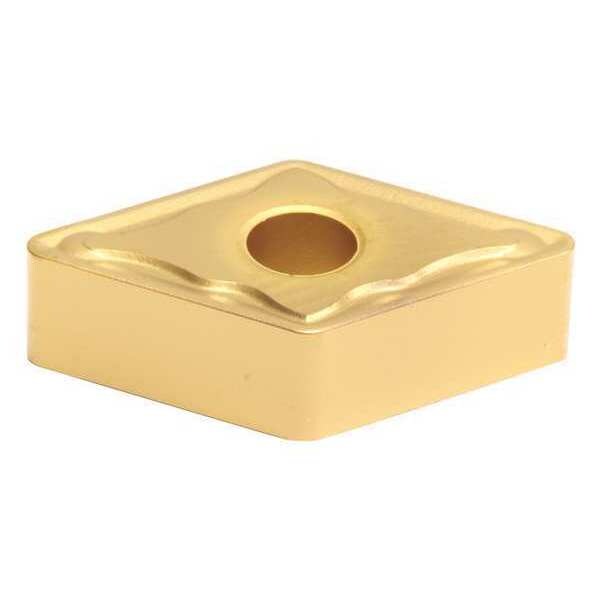

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide DNMG431EUX-AC810P - main

Diamond Turning Insert, Diamond, 4, DNMG, 1, Carbide

  • Mfr # DNMG431EUX-AC810P

  • Zoro # G6322368

product price: $15.39
/ea
Sold in multiples of 10 for $153.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG431EUX-AC810P
Zoro #
G6322368
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Nose Radius
0.0156"
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
DNMG150404N-UX
Hardened (H) Compatibility
No
Steel (P) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Non Ferrous (N) Compatibility
No
No. of Edges
2
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
Mounting Style
Top and Hole Clamping
ANSI Number
DNMG431EUX-AC810P
Coating
Uncoated
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
ANSI Code
DNMG431EUX
Features
Excellent Wear Resistance
Clearance Angle
0 Degrees
Cutting Application
Turning
Chip-Breaker Style
Double
Material - Machining
Carbide
Primary Material Application ISO Code
P10
Chip-Breaker Code
EUX
Manufacturer Grade
AC810P
Coating Process
CVD
Finish - Machining
Al203+TiCN
Included Angle
55 Degrees
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Primary Material Application
Steel
Shape
Rhombic
Number of Cutting Edges
2
Material
Carbide
Style
DNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG431EUX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
