  11. Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet

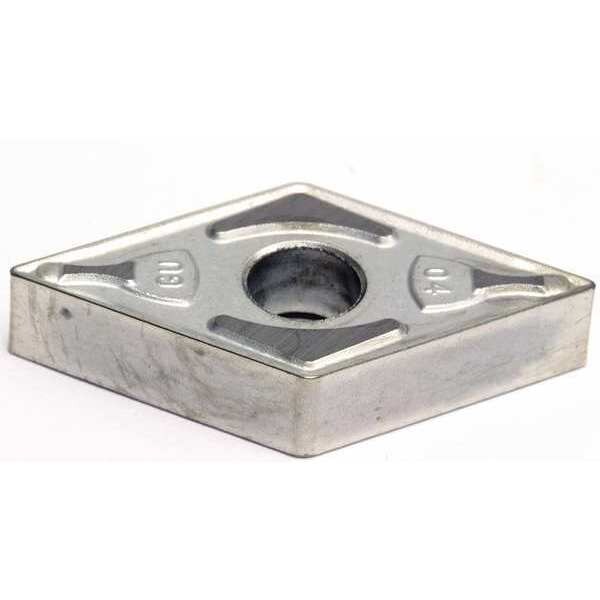

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet DNMG431EGU-T1500A - main

Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet

  • Mfr # DNMG431EGU-T1500A

  • Zoro # G6322690

product price: $12.79
/ea
Sold in multiples of 10 for $127.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG431EGU-T1500A
Zoro #
G6322690
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Mounting Hole Dia.
0.203"
Nose Radius
0.0156"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Medium
Rake
Positive
ISO Number
DNMG150404NGU
ANSI Number
DNMG431EGU-T1500A
Mounting Style
Top and Hole Clamping
Workpiece Compatibility
Stainless (M), Steel (P)
Cast Iron (K) Compatibility
No
Coating
CVD
Cutting Direction
Neutral
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
No. of Edges
2
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Insert Holding Type
Straight Hole
Chip-Breaker Style
Double
Primary Material Application ISO Code
P05 - P30
Measurement System
Fractional Inch
Material - Machining
Cermet
Number of Cutting Edges
2
ANSI Code
DNMG431EGU
Shape
Rhombic
Cutting Application
Turning
Clearance Angle
0 Degrees
Features
Excellent Wear Resistance and Fracture Resistance
Manufacturer Grade
T1500A
Primary Material Application
Steel
Included Angle
55 Degrees
Chip-Breaker Code
EGU
Material
Cermet
Application
Medium
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 1/2 in, ANSI Code DNMG431EGU, Chip-Breaker Style Double, Clearance Angle 0 Degrees
