  11. Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet

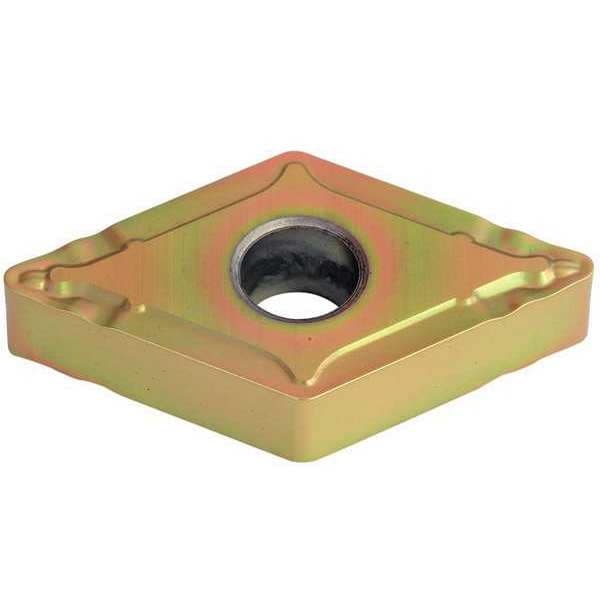

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet DNMG431ESX-T1500Z - main

Diamond Turning Insert, Diamond, 4, DNMG, 1, Cermet

  • Mfr # DNMG431ESX-T1500Z

  • Zoro # G6322410

product price: $13.19
/ea
Sold in multiples of 10 for $131.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
431
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG431ESX-T1500Z
Zoro #
G6322410
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
431
Corner Radius
1
Nose Radius
0.0156"
Mounting Hole Dia.
0.203"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T1500Z
Insert Material
Cermet
Insert Application
Finishing
Rake
Positive
ISO Number
DNMG150404N-SX
Coating
Uncoated
ANSI Number
DNMG431ESX-T1500Z
For Use With
Toolholders, Boring Bars
No. of Edges
2
Mounting Style
Top and Hole Clamping
Cast Iron (K) Compatibility
No
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Stainless (M), Steel (P)
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Non Ferrous (N) Compatibility
No
Shape
Rhombic
Number of Cutting Edges
2
Manufacturer Grade
T1500Z
Material - Machining
Cermet
Included Angle
55 Degrees
Primary Material Application ISO Code
P
Chip-Breaker Code
ESX
Features
Wear Resistant
Chip-Breaker Style
Double
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Primary Material Application
Steel
Cutting Application
Turning
ANSI Code
DNMG431ESX
Coating Process
PVD
Insert Holding Type
Straight Hole
Material
Cermet
Application
Finishing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code ESX, Inscribed Circle 1/2 in, ANSI Code DNMG431ESX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process PVD
