  11. Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

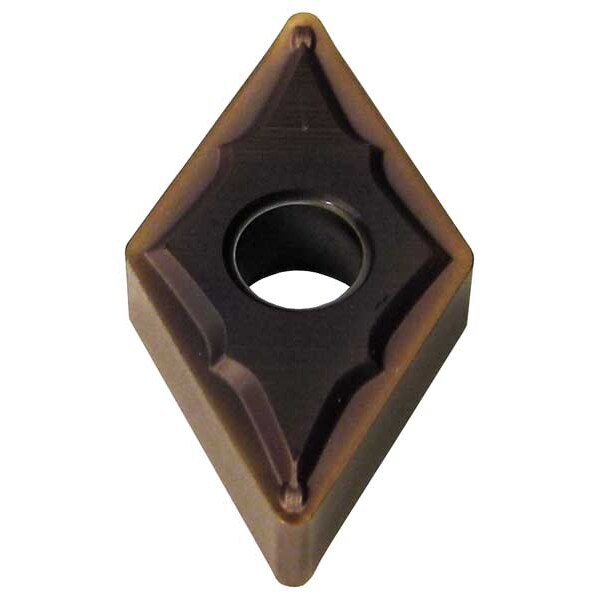

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide DNMG432ESU-AC630M - main

Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

  • Mfr # DNMG432ESU-AC630M

  • Zoro # G3762884

product price: $13.15
/ea
Sold in multiples of 10 for $131.50

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG432ESU-AC630M
Zoro #
G3762884
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Nose Radius
0.0312"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC630M
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
DNMG150408NSU
For Use With
DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars
Steel (P) Compatibility
No
Hardened (H) Compatibility
No
Non Ferrous (N) Compatibility
No
Cast Iron (K) Compatibility
Yes
Mounting Style
Clamp
Super Alloy (S) Compatibility
No
Relief Angle
0 Degrees
Coating
Super FF TiCN/Al2O3/TiN CVD
Stainless (M) Compatibility
Yes
Cutting Direction
Neutral
Workpiece Compatibility
Cast Iron (K), Stainless (M)
No. of Edges
4
ANSI Number
DNMG432ESU-AC630M
Chip-Breaker Code
ESU
Manufacturer Grade
AC630M
Material - Machining
Carbide
Primary Material Application ISO Code
M, P
Shape
Rhombic
Finish - Machining
Al203+TiCN
Measurement System
Fractional Inch
Primary Material Application
Stainless Steel, Steel
Insert Holding Type
Straight Hole
ANSI Code
DNMG432ESU
Included Angle
55 Degrees
Clearance Angle
0 Degrees
Cutting Application
Turning
Coating Process
CVD
Chip-Breaker Style
Double
Number of Cutting Edges
4
Material
Carbide
Style
DNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG432ESU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
