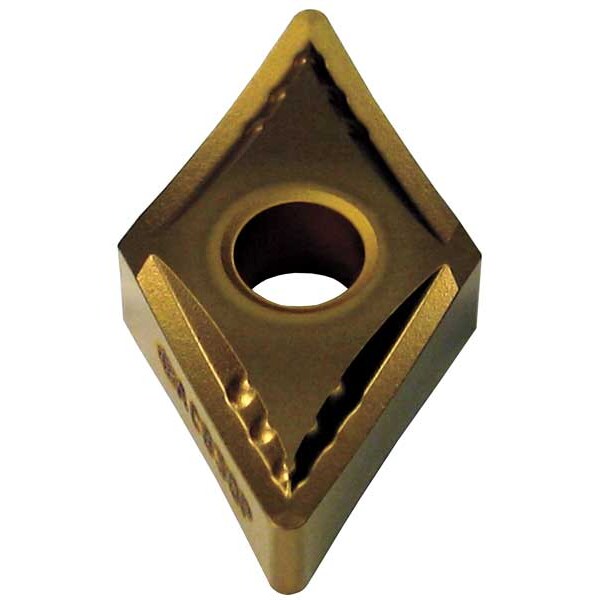

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide DNMG432EUP-AC830P - main

Diamond Turning Insert, Diamond, 4, DNMG, 2, Carbide

  • Mfr # DNMG432EUP-AC830P

  • Zoro # G3763602

product price: $18.49
/ea
Sold in multiples of 10 for $184.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG432EUP-AC830P
Zoro #
G3763602
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Mounting Hole Dia.
0.203
Nose Radius
0.0312"
Insert Thickness
0.1875"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
DNMG150408NUP
Mounting Style
Clamp
Cast Iron (K) Compatibility
Yes
For Use With
DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars
Hardened (H) Compatibility
No
Relief Angle
0 Degrees
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Cutting Direction
Neutral
ANSI Number
DNMG432EUP-AC830P
Steel (P) Compatibility
Yes
Coating
Super FF TiCN/Al2O3/TiN CVD
Super Alloy (S) Compatibility
No
No. of Edges
4
Shape
Rhombic
Primary Material Application
Steel
Manufacturer Grade
AC830P
Chip-Breaker Code
EUP
Finish - Machining
Al203+TiCN
Cutting Application
Turning
Primary Material Application ISO Code
P
Chip-Breaker Style
Double
Material - Machining
Carbide
Insert Holding Type
Straight Hole
Measurement System
Fractional Inch
Features
Excellent Wear Resistance
Clearance Angle
0 Degrees
ANSI Code
DNMG432EUP
Coating Process
CVD
Included Angle
55 Degrees
Number of Cutting Edges
4
Material
Carbide
Style
DNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code EUP, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG432EUP, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
