  11. Diamond Turning Insert, Diamond, 4, DNMG, 2, Cermet

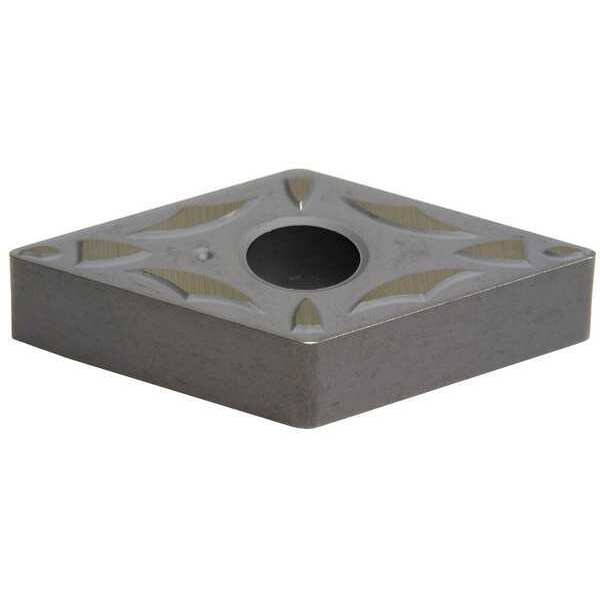

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 2, Cermet DNMG432EFA-T1500A - main

Diamond Turning Insert, Diamond, 4, DNMG, 2, Cermet

  • Mfr # DNMG432EFA-T1500A

  • Zoro # G6322185

product price: $11.99
/ea
Sold in multiples of 10 for $119.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
432
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG432EFA-T1500A
Zoro #
G6322185
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
432
Corner Radius
2
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203"
Nose Radius
0.0313"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
T1500A
Insert Material
Cermet
Insert Application
Finishing
Rake
Positive
ISO Number
DNMG120408N-FA
Workpiece Compatibility
Stainless (M), Steel (P)
Hardened (H) Compatibility
No
For Use With
Toolholders, Boring Bars
ANSI Number
DNMG432EFA-T1500A
Steel (P) Compatibility
Yes
Stainless (M) Compatibility
Yes
Mounting Style
Top and Hole Clamping
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
No. of Edges
2
Coating
CVD
Cast Iron (K) Compatibility
No
Shape
Rhombic
Clearance Angle
0 Degrees
Measurement System
Fractional Inch
Material - Machining
Cermet
Primary Material Application
Steel
Cutting Application
Turning
Included Angle
55 Degrees
ANSI Code
DNMG432EFA
Features
Excellent Wear Resistance and Fracture Resistance
Chip-Breaker Style
Double
Chip-Breaker Code
EFA
Manufacturer Grade
T1500A
Number of Cutting Edges
2
Insert Holding Type
Straight Hole
Primary Material Application ISO Code
P05 - P30
Material
Cermet
Style
DNMG
Application
Finishing

Description

Diamond Turning Insert, Chip-Breaker Code EFA, Inscribed Circle 1/2 in, ANSI Code DNMG432EFA, Chip-Breaker Style Double, Clearance Angle 0 Degrees
