  11. Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

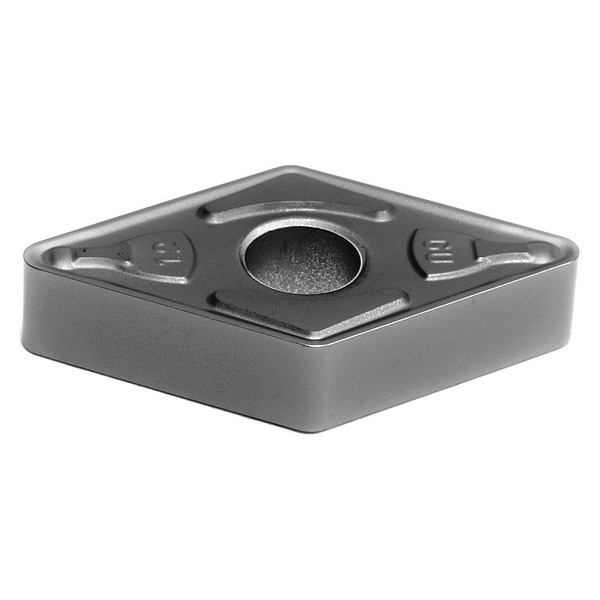

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide DNMG433EGU-AC5015S - main

Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

  • Mfr # DNMG433EGU-AC5015S

  • Zoro # G7553535

product price: $13.85
/ea
Sold in multiples of 10 for $138.50

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG433EGU-AC5015S
Zoro #
G7553535
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Mounting Hole Dia.
0.203"
Insert Thickness
0.187"
Nose Radius
0.046"
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC5015S
Insert Material
Carbide
Insert Application
Semi-Finishing
Rake
Negative
ISO Number
DNMG150412N-GU
Cast Iron (K) Compatibility
Yes
Hardened (H) Compatibility
No
Stainless (M) Compatibility
Yes
Mounting Style
Screw
Non Ferrous (N) Compatibility
Yes
Workpiece Compatibility
Cast Iron (K), Nonferrous (N), Stainless (M), Steel (P), Super Alloy (S)
Cutting Direction
Neutral
No. of Edges
4
Steel (P) Compatibility
Yes
Relief Angle
0 Degrees
For Use With
Toolholders, Boring Bars
Coating
PVD
Super Alloy (S) Compatibility
Yes
ANSI Number
DNMG433EGU
Primary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Magnesium, Nickel, Stainless Steel, Steel, Titanium
Cutting Application
Turning
Shape
Rhombic
Finish - Machining
AlTiSiN
ANSI Code
DNMG433EGU
Insert Holding Type
Straight Hole
Number of Cutting Edges
4
Primary Material Application ISO Code
K, M, N, P, S
Chip-Breaker Style
Double
Chip-Breaker Code
EGU
Features
Excellent Wear Resistance
Clearance Angle
0 Degrees
Manufacturer Grade
AC5015S
Measurement System
Fractional Inch
Included Angle
55 Degrees
Material - Machining
Carbide
Material
Carbide

Description

Diamond Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 1/2 in, AlTiSiN, ANSI Code DNMG433EGU, Chip-Breaker Style Double, Clearance Angle 0 Degrees
