  6. Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

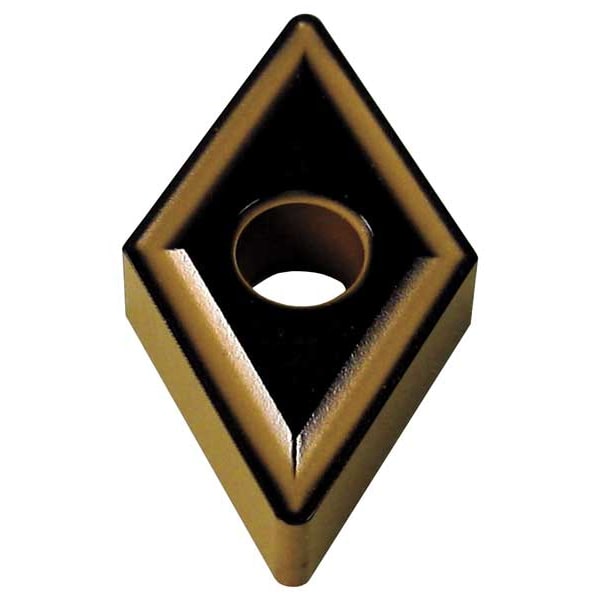

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide DNMG433ESU-AC630M - main

Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

  • Mfr # DNMG433ESU-AC630M

  • Zoro # G3767337

product price:  $15.39
/ea
Sold in multiples of 10 for $153.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
433
Chip-Breaker
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DNMG433ESU-AC630M
Zoro #
G3767337
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
433
Corner Radius
3
Nose Radius
0.0472"
Insert Thickness
0.1875"
Mounting Hole Dia.
0.203
Thickness
3

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC630M
Insert Material
Carbide
Insert Application
Finishing
Rake
8 Degrees
ISO Number
DNMG150412NSU
Non Ferrous (N) Compatibility
No
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Mounting Style
Clamp
No. of Edges
4
Steel (P) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M)
Coating
Super FF TiCN/Al2O3/TiN CVD
Super Alloy (S) Compatibility
No
Cutting Direction
Neutral
ANSI Number
DNMG433ESU-AC630M
Hardened (H) Compatibility
No
Relief Angle
0 Degrees
For Use With
DDJN, MDJN Toolholders, A-MDU, A-MDQ Boring Bars
Primary Material Application
Stainless Steel, Steel
Chip-Breaker Code
ESU
Cutting Application
Turning
Number of Cutting Edges
4
Included Angle
55 Degrees
Shape
Rhombic
Finish - Machining
Al203+TiCN
Chip-Breaker Style
Double
ANSI Code
DNMG433ESU
Measurement System
Fractional Inch
Primary Material Application ISO Code
M, P
Manufacturer Grade
AC630M
Insert Holding Type
Straight Hole
Coating Process
CVD
Material - Machining
Carbide
Clearance Angle
0 Degrees
Material
Carbide
Application
Finishing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code ESU, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG433ESU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
