  11. Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

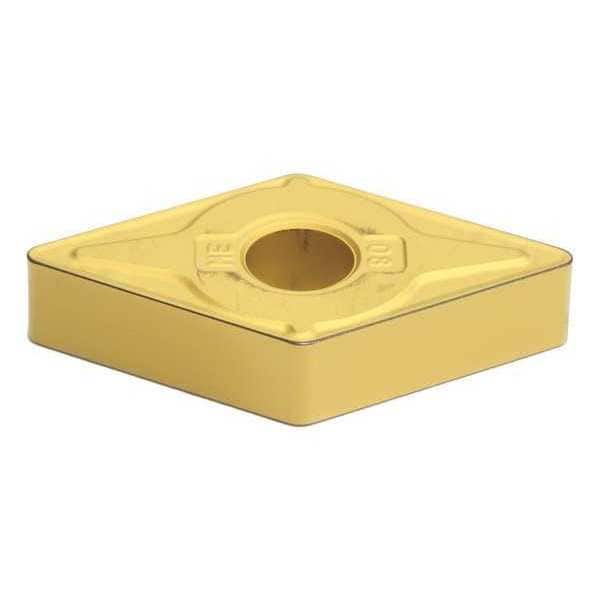

Sumitomo Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide DNMG443EME-AC820P - main

Diamond Turning Insert, Diamond, 4, DNMG, 3, Carbide

  • Mfr # DNMG443EME-AC820P

  • Zoro # G6320907

product price: $17.29
/ea
Sold in multiples of 10 for $172.90

Key Features

Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Insert Size
443
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DNMG443EME-AC820P
Zoro #
G6320907
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
443
Corner Radius
3
Insert Thickness
0.2500"
Nose Radius
0.0469"
Mounting Hole Dia.
0.203"
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
DNMG
Inscribed Circle
4
Chip-Breaker
Yes
Grade
AC820P
Insert Material
Carbide
Insert Application
Roughing
Rake
Positive
ISO Number
DNMG150612N-ME
Coating
CVD
Mounting Style
Top and Hole Clamping
Super Alloy (S) Compatibility
No
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Stainless (M) Compatibility
Yes
No. of Edges
2
Hardened (H) Compatibility
No
ANSI Number
DNMG443EME-AC820P
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Steel (P) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Cutting Direction
Neutral
Chip-Breaker Style
Double
Shape
Rhombic
Insert Holding Type
Straight Hole
Included Angle
55 Degrees
Number of Cutting Edges
2
Coating Process
CVD
Finish - Machining
Al203+TiCN
Clearance Angle
0 Degrees
Primary Material Application ISO Code
K20, P20
Chip-Breaker Code
EME
Features
Excellent Wear Resistance and Fracture Resistance
ANSI Code
DNMG443EME
Manufacturer Grade
AC820P
Material - Machining
Carbide
Measurement System
Fractional Inch
Cutting Application
Turning
Primary Material Application
Cast Iron, Steel
Material
Carbide
Application
Roughing
Style
DNMG

Description

Diamond Turning Insert, Chip-Breaker Code EME, Inscribed Circle 1/2 in, Al203+TiCN, ANSI Code DNMG443EME, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
