  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

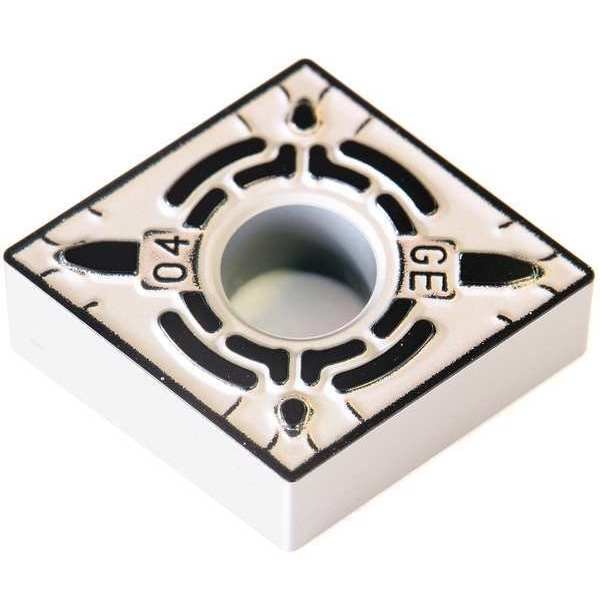

Sumitomo Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542EGE-AC8025P - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542EGE-AC8025P

  • Zoro # G6328640

product price: $20.29
/ea
Sold in multiples of 10 for $202.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542EGE-AC8025P
Zoro #
G6328640
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
542
Corner Radius
2
Mounting Hole Dia.
0.250"
Insert Thickness
0.2500"
Nose Radius
0.0313"
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG160608N-GE
ANSI Number
CNMG542EGE-AC8025P
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Hardened (H) Compatibility
No
Cutting Direction
Neutral
Cast Iron (K) Compatibility
Yes
Coating
CVD
Non Ferrous (N) Compatibility
No
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
No. of Edges
4
Mounting Style
Top and Hole Clamping
Primary Material Application ISO Code
P25
Manufacturer Grade
AC8025P
Clearance Angle
0 Degrees
Coating Process
CVD
ANSI Code
CNMG542EGE
Included Angle
80 Degrees
Primary Material Application
Steel
Insert Holding Type
Straight Hole
Shape
Rhombic
Measurement System
Fractional Inch
Features
Adhesion Resistant, Chipping Resistant
Number of Cutting Edges
4
Finish - Machining
Absotech Platinum
Material - Machining
Carbide
Cutting Application
Turning
Chip-Breaker Style
Double
Chip-Breaker Code
EGE
Material
Carbide
Application
Medium
Style
CNMG

Description

Diamond Turning Insert, Chip-Breaker Code EGE, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG542EGE, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
