  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

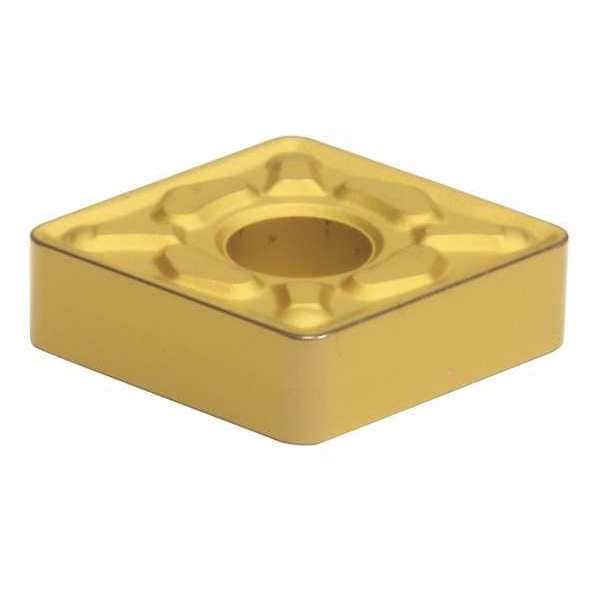

Sumitomo Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542EGU-AC830P - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542EGU-AC830P

  • Zoro # G6328598

product price: $17.49
/ea
Sold in multiples of 10 for $174.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542EGU-AC830P
Zoro #
G6328598
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
542
Corner Radius
2
Insert Thickness
0.2500"
Mounting Hole Dia.
0.250"
Nose Radius
0.0313"
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
AC830P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
CNMG160608N-GU
ANSI Number
CNMG542EGU-AC830P
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
No. of Edges
4
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Mounting Style
Top and Hole Clamping
Coating
CVD
Cutting Direction
Neutral
Hardened (H) Compatibility
No
Super Alloy (S) Compatibility
No
Steel (P) Compatibility
Yes
Primary Material Application
Steel
Insert Holding Type
Straight Hole
Chip-Breaker Style
Double
Coating Process
CVD
Primary Material Application ISO Code
P
Shape
Rhombic
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Cutting Application
Turning
Finish - Machining
Al203+TiCN
Included Angle
80 Degrees
Material - Machining
Carbide
Number of Cutting Edges
4
ANSI Code
CNMG542EGU
Chip-Breaker Code
EGU
Features
Excellent Wear Resistance
Manufacturer Grade
AC830P
Material
Carbide
Application
Medium
Style
CNMG

Description

Diamond Turning Insert, Chip-Breaker Code EGU, Inscribed Circle 5/8 in, Al203+TiCN, ANSI Code CNMG542EGU, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
