  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

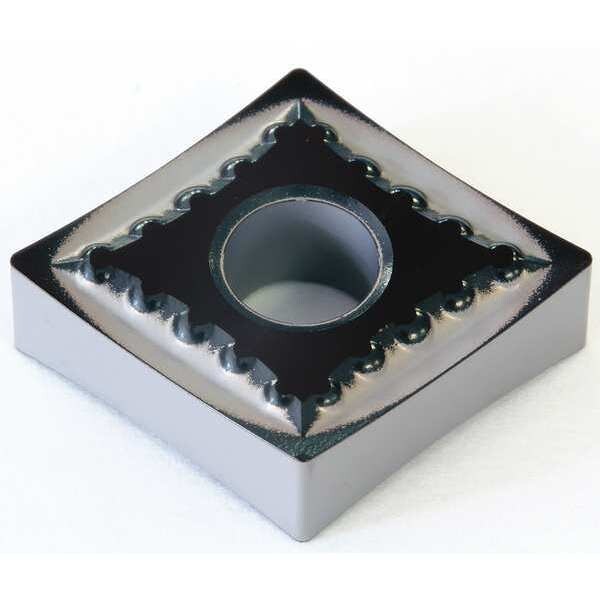

Sumitomo Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542EUP-AC8025P - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542EUP-AC8025P

  • Zoro # G6328415

product price: $20.85
/ea
Sold in multiples of 10 for $208.50

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542EUP-AC8025P
Zoro #
G6328415
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
542
Corner Radius
2
Mounting Hole Dia.
0.250"
Insert Thickness
0.2500"
Nose Radius
0.0313"
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG160608N-UP
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Coating
Uncoated
Non Ferrous (N) Compatibility
No
Mounting Style
Top and Hole Clamping
For Use With
Toolholders, Boring Bars
ANSI Number
CNMG542EUP-AC8025P
Cutting Direction
Neutral
Steel (P) Compatibility
Yes
Hardened (H) Compatibility
No
No. of Edges
4
Stainless (M) Compatibility
Yes
Super Alloy (S) Compatibility
No
Cast Iron (K) Compatibility
Yes
Coating Process
CVD
Measurement System
Fractional Inch
Primary Material Application ISO Code
P25
Primary Material Application
Steel
Features
Adhesion Resistant, Chipping Resistant
Manufacturer Grade
AC8025P
Included Angle
80 Degrees
Number of Cutting Edges
4
Chip-Breaker Style
Double
Chip-Breaker Code
EUP
Shape
Rhombic
Clearance Angle
0 Degrees
Material - Machining
Carbide
Cutting Application
Turning
Insert Holding Type
Straight Hole
Finish - Machining
Absotech Platinum
ANSI Code
CNMG542EUP
Material
Carbide
Style
CNMG
Application
Medium

Description

Diamond Turning Insert, Chip-Breaker Code EUP, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG542EUP, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
