  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

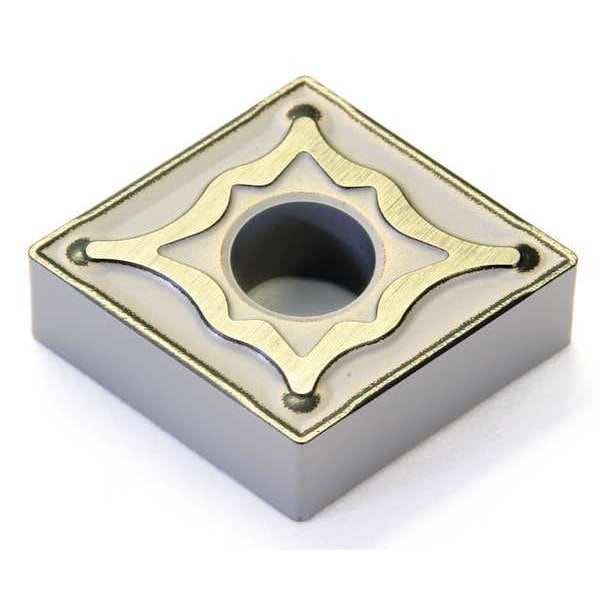

Sumitomo Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542EUX-AC8025P - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542EUX-AC8025P

  • Zoro # G6328397

product price: $21.69
/ea
Sold in multiples of 10 for $216.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542EUX-AC8025P
Zoro #
G6328397
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
542
Corner Radius
2
Mounting Hole Dia.
0.250"
Insert Thickness
0.2500"
Nose Radius
0.0313"
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
AC8025P
Insert Material
Carbide
Insert Application
Medium
Rake
Negative
ISO Number
CNMG160608N-UX
Coating
Uncoated
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Cutting Direction
Neutral
Mounting Style
Top and Hole Clamping
No. of Edges
4
Non Ferrous (N) Compatibility
No
Steel (P) Compatibility
Yes
For Use With
Toolholders, Boring Bars
Super Alloy (S) Compatibility
No
ANSI Number
CNMG542EUX-AC8025P
Stainless (M) Compatibility
Yes
Hardened (H) Compatibility
No
Cast Iron (K) Compatibility
Yes
Cutting Application
Turning
Primary Material Application
Steel
Shape
Rhombic
Material - Machining
Carbide
Included Angle
80 Degrees
Features
Adhesion Resistant, Chipping Resistant
Chip-Breaker Style
Double
Primary Material Application ISO Code
P25
Insert Holding Type
Straight Hole
Clearance Angle
0 Degrees
Coating Process
CVD
Number of Cutting Edges
4
Manufacturer Grade
AC8025P
Finish - Machining
Absotech Platinum
Measurement System
Fractional Inch
Chip-Breaker Code
EUX
ANSI Code
CNMG542EUX
Material
Carbide
Application
Medium
Style
CNMG

Description

Diamond Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 5/8 in, Absotech Platinum, ANSI Code CNMG542EUX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
