  11. Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

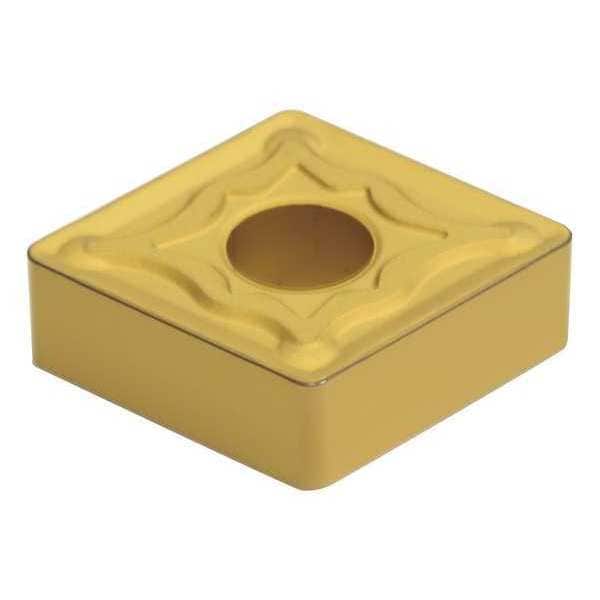

Sumitomo Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide CNMG542EUX-AC810P - main

Diamond Turning Insert, Diamond, 5, CNMG, 2, Carbide

  • Mfr # CNMG542EUX-AC810P

  • Zoro # G6328388

product price: $16.39
/ea
Sold in multiples of 10 for $163.90

Key Features

Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Insert Size
542
Chip-Breaker
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CNMG542EUX-AC810P
Zoro #
G6328388
UPC #
-
Country of Origin
Japan

Dimensions

Insert Size
542
Corner Radius
2
Mounting Hole Dia.
0.250"
Nose Radius
0.0313"
Insert Thickness
0.2500"
Thickness
4

Details

Item
Diamond Turning Insert
Insert Shape
Diamond
Insert Style
CNMG
Inscribed Circle
5
Chip-Breaker
Yes
Grade
AC810P
Insert Material
Carbide
Insert Application
Medium
Rake
Positive
ISO Number
CNMG160608N-UX
Mounting Style
Top and Hole Clamping
Workpiece Compatibility
Cast Iron (K), Stainless (M), Steel (P)
Steel (P) Compatibility
Yes
Cutting Direction
Neutral
Hardened (H) Compatibility
No
ANSI Number
CNMG542EUX-AC810P
Non Ferrous (N) Compatibility
No
For Use With
Toolholders, Boring Bars
Stainless (M) Compatibility
Yes
Cast Iron (K) Compatibility
Yes
Coating
Uncoated
Super Alloy (S) Compatibility
No
No. of Edges
4
ANSI Code
CNMG542EUX
Chip-Breaker Code
EUX
Chip-Breaker Style
Double
Measurement System
Fractional Inch
Clearance Angle
0 Degrees
Insert Holding Type
Straight Hole
Shape
Rhombic
Manufacturer Grade
AC810P
Number of Cutting Edges
4
Coating Process
CVD
Finish - Machining
Al203+TiCN
Material - Machining
Carbide
Included Angle
80 Degrees
Primary Material Application
Steel
Primary Material Application ISO Code
P10
Cutting Application
Turning
Features
Excellent Wear Resistance
Material
Carbide
Application
Medium
Style
CNMG

Description

Diamond Turning Insert, Chip-Breaker Code EUX, Inscribed Circle 5/8 in, Al203+TiCN, ANSI Code CNMG542EUX, Chip-Breaker Style Double, Clearance Angle 0 Degrees , Coating Process CVD
