Sumitomo

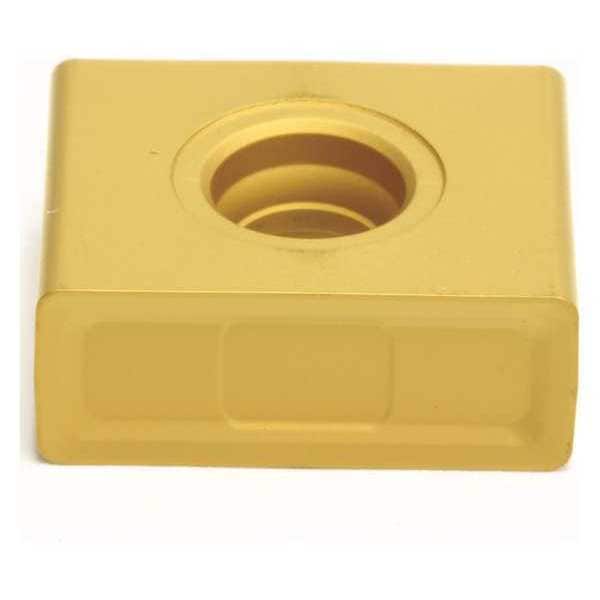

Milling Insert, ACK300 Grade, Carbide

product price: $11.19
/ea
Sold in multiples of 10 for $111.90
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • ANSI Number LNMX160608PNSN-H-ACK300
  • No. of Edges 4
  • Cast Iron (K) Compatibility Yes
  • Stainless (M) Compatibility Yes
  • Insert Application Roughing
See all product information

Product Information

Dimensions

Nose Radius 0.800"
Insert Size 160608
Corner Radius 1/32 in
Width 0.4760 in
Depth of Cut 12.00mm
Cutting Edge Length 0.6340 in

Details

ANSI Number LNMX160608PNSN-H-ACK300
Item Diamond Milling Insert
No. of Edges 4
Cast Iron (K) Compatibility Yes
Stainless (M) Compatibility Yes
Insert Application Roughing
Grade ACK300
Insert Thickness 0.250"
Coating PVD
Inscribed Circle 16.00mm
Super Alloy (S) Compatibility No
Steel (P) Compatibility No
Insert Shape Rectangle
Hardened (H) Compatibility No
Mounting Style Screw-On
Lead Angle 0 Degrees
Cutting Direction Neutral
Insert Style LNMX
Rake -15 Degrees Radial, -5 Degrees Axial
Workpiece Compatibility Cast Iron (K), Stainless (M), Super Alloy (S)
For Use With Milling Cutters
Chip-Breaker Yes
Non Ferrous (N) Compatibility No
Insert Material Carbide
ISO Number LNMX160608PNSN-H-ACK300
Thickness 0.250 in
Manufacturer Grade ACK300
Coating Process PVD
For Toolholder XDMT120408PDEN, XDMT120408PDENH, XDMT150408PDEN
Cutting Application Roughing
Chip-Breaker Code H
Finish - Machining TiAlN+AlCrN
Insert Holding Type Screw-On
Primary Material Application Cast Iron
Chip-Breaker Style 10 Degrees Rake Angle
Measurement System Metric
Clearance Angle 0 Degrees
Hole Type Straight or Countersink Hole
Primary Material Application ISO Code K
Shape Rectangular
Material - Machining Carbide
ANSI Code LNMX160608PNSN-H-ACK300
Wiper Insert Yes
Features Excellent Balance of Fracture and Wear Resistance
Number of Cutting Edges 4

Description

Diamond Milling Insert, Inscribed Circle 16.00mm, -15 Degrees Radial, -5 Degrees Axial
