  9. Milling Insert, ACP100 Grade, Carbide

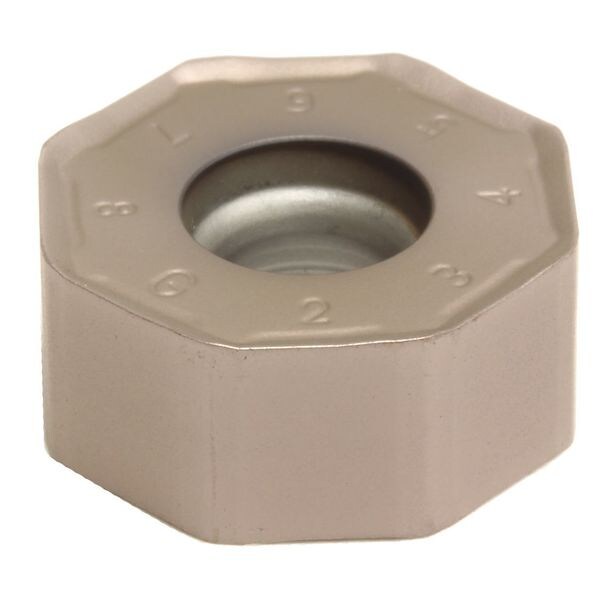

Sumitomo Milling Insert, ACP100 Grade, Carbide ONMT05T6ANER-G-ACP100 - main

Milling Insert, ACP100 Grade, Carbide

  • Mfr # ONMT05T6ANER-G-ACP100

  • Zoro # G0595819

product price: $18.35
/ea
Sold in multiples of 10 for $183.50

Key Features

No. of Edges
8
Lead Angle
45 Degrees
Inscribed Circle
0.5315 in
Rake
-10 Degrees Radial, -5 Degrees Axial
Insert Shape
Octagon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ONMT05T6ANER-G-ACP100
Zoro #
G0595819
UPC #
-
Country of Origin
Japan

Dimensions

Insert Thickness
0.236"
Insert Size
05T6
Depth of Cut
3.00mm
Thickness
0.236 in

Details

No. of Edges
8
Lead Angle
45 Degrees
Inscribed Circle
0.5315 in
Rake
-10 Degrees Radial, -5 Degrees Axial
Insert Shape
Octagon
Super Alloy (S) Compatibility
No
Stainless (M) Compatibility
No
Insert Style
ONMT
Workpiece Compatibility
Steel (P)
Steel (P) Compatibility
Yes
For Use With
Milling Cutters
Insert Application
Finishing
Grade
ACP100
Item
Octagon Milling Insert
Non Ferrous (N) Compatibility
No
ANSI Number
ONMT05T6ANER-G-ACP100
Cast Iron (K) Compatibility
No
Mounting Style
Screw-On
Hardened (H) Compatibility
No
Insert Material
Carbide
Cutting Direction
Neutral
Chip-Breaker
Yes
Coating
CVD
ISO Number
ONMT05T6ANER-G-ACP100
Measurement System
Fractional Inch
Primary Material Application
Steel
Chip-Breaker Style
On One Side
Hole Type
Countersink Hole
ANSI Code
ONMT05T6ANER-G-ACP100
Clearance Angle
0 Degrees
Number of Cutting Edges
8
Secondary Material Application ISO Code
M
Features
Excellent Balance of Fracture and Wear Resistance
Chip-Breaker Code
G
For Toolholder
DGC13040EW, DGC13040RS, DGC13050EW, DGC13050RS, DGC13063EW, DGC13063RS, DGC13080R, DGC13100R, DGC13125R, DGC13160R, DGC13200R, DGC13250R, DGCF13050RS, DGCF13063RS, DGCF13080R, DGCF13100R, DGCF13125R, DGCF13160R, DGCF13200R, DGCF13250R, DGCM13050RS, DGCM13063RS, DGCM13080R, DGCM13100R, DGCM13125R, DGCM13160R, DGCM13200R, DGCM13250R
Finish - Machining
TiCN
Coating Process
CVD
Manufacturer Grade
ACP100
Included Angle
135 Degrees
Shape
Octagon
Wiper Insert
Yes
Insert Holding Type
Screw-On
Material - Machining
Carbide
Secondary Material Application
Stainless Steel
Primary Material Application ISO Code
P
Cutting Application
Finishing

Description

Octagon Milling Insert, Inscribed Circle 0.5315 in
