Shop CHICAGO-LATROBE

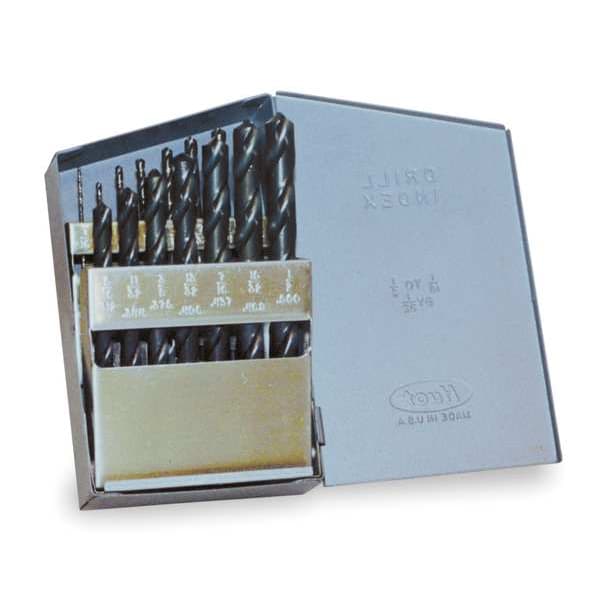

15PC 118 Degree General Purpose Jobber Lengh Drill Set Chicago-Latrobe 150 Steam Oxide HSS 1/16-1/2

  • Mfr # 57713

  • Zoro # G0764757

product price:
$
86.79
/ea

Key Features

Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
57713
Zoro #
G0764757
UPC #
662355577134
Country of Origin
United States

Dimensions

Depth:Dia. Ratio
4xD
Sizes Included
1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 15/32", 1/2"
Shank Dia.
1/6 in
Drill Bit Dimension Type
Fractional Inch
Drill Bit Size
1/16 in to 1/2 in by 32nds
Depth x Dia. Ratio
4xD
Size Range
1/16"-1/2"
Drill Bit Sizes Included
1/16 in, 1/2 in, 1/4 in, 1/8 in, 11/32 in, 13/32 in, 15/32 in, 3/16 in, 3/32 in, 3/8 in, 5/16 in, 5/32 in, 7/16 in, 7/32 in
Smallest Drill Bit Size
1/16 in
Drill Length Class
Jobber-Length
Largest Drill Bit Size
1/2 in
Overall Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Wire Rope Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in
Length
1 7/8 in, 2 1/4 in, 2 3/4 in, 3 1/8 in, 3 1/2 in, 3 3/4 in, 4 in, 4 1/4 in, 4 1/2 in, 4 3/4 in, 5 in, 5 1/4 in, 5 1/2 in, 5 3/4 in, 6 in

Details

Item
Jobber Length Drill Bit Set
Number of Pieces
15
Cutting Direction
Right Hand
Drill Bit Point Angle
118 Degrees
Drill Bit Material
High Speed Steel
Includes
Metal Drill Index
Point Type
Conventional Point
List Number
150
Drill Bit Grouping
Drill Bit Set
Standards
ASME B94.11M-1993
Measurement System
Fractional Inch
Shank Type
Straight
Left/Right Hand
Right
Drill Style
Jobber Drill
Drill Bit Point Type
Conventional Point
Primary Material Application
Cast Iron, Steel
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Material Grade - Machining
General Purpose
Aircraft Drill
No
Shank Type - Machining
Straight
Number of Drill Bits
15
Finish - Machining
Black Oxide
Flute Type
Spiral
Drill Bit Case Type
Metal Index
Primary Material Application ISO Code
K, P
Spiral Direction
Right Hand
Number of Flutes
2
Helix Angle - Maximum
34 Degrees
Helix Angle - Minimum
21 Degrees

Description

The CHICAGO-LATROBE 57713 is a jobber length drill bit set consisting of 15 high speed steel bits included for general-purpose machining use. It includes fractional inch sizes ranging from 1/16" to 1/2" with conventional 118° point angles and right-hand spiral flutes. The set includes a metal drill index case for organization.

Key Features:

  • Number of pieces: 15 drill bits with sizes from 1/16" to 1/2"
  • Drill length class: Jobber length, with overall lengths between 1 7/8" and 6"
  • Material: High speed steel, general purpose grade
  • Point type: Conventional 118° angle for standard drilling
  • Flute design: Two-flute spiral with right-hand cutting direction
  • Shank type and diameter: Straight shank, 1/6" diameter
  • Primary material application codes: Meets the ISO application codes K and P
  • Measurement system: Fractional inch dimensions
  • Complies with ASME B94.11M-1993 standards
  • Includes a metal index case for bit storage and organization
